Senor PuffPuff Posted July 20, 2013 Report Share Posted July 20, 2013 Anyone know anything about how to wire in a surveillance mode switch on a non-police Impala? Maybe even some wiring diagrams? I'm assuming after wiring the switch in I'd probably need to reprogram the BCM, but I'm hoping not. This is for an ACTUAL police-style SURV MODE switch, not just connecting two wires to the front/rear lamp fuses and switching it on or off. Although that will be what I'll do if I need to re-program the BCM for the actual SURV switch. Thanks in advance. Quote Link to comment Share on other sites More sharing options...
jake91 Posted July 21, 2013 Report Share Posted July 21, 2013 One click on the parking brake kills all the lights. wonder if you could tap into whatever wire does that and put a switch on it Sent from my iPhone using Tapatalk Quote Link to comment Share on other sites More sharing options...
cutlassdude96 Posted July 21, 2013 Report Share Posted July 21, 2013 Quote Link to comment Share on other sites More sharing options...
intern8tion9l Posted July 22, 2013 Report Share Posted July 22, 2013 lol, that was exactly what i thought of Quote Link to comment Share on other sites More sharing options...
Senor PuffPuff Posted July 24, 2013 Author Report Share Posted July 24, 2013 Lol... @Jake, I'm in a 2001 Impala, and the parking brake thing doesn't work. They literally just about bullet-proofed the DRL system on these cars for some reason. The only way I was able to kill the DRL's without an aftermarket switch was to pull the green DRL wire from the back of the engine bay fuse block, but now I'm getting the "service vehicle soon" light which wasn't really bothering me at first, but it's annoying when driving at night. Quote Link to comment Share on other sites More sharing options...
jake91 Posted July 24, 2013 Report Share Posted July 24, 2013 Hmmm odd works in my 03 GTP Sent from my iPhone using Tapatalk Quote Link to comment Share on other sites More sharing options...

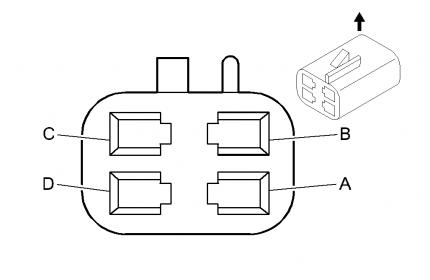

alec_b Posted July 25, 2013 Report Share Posted July 25, 2013 (edited) Well it took a little digging, but I found it, at least for a 2005 police model. The SURV MODE switch uses the exact same connector as the fog light switch, but with different wiring. I've broken it down below for you. That's the fog light/surv mode switch connector end view. Here's the breakdown: FOG A - BLK/WHT - GROUND B - GRY - INSTRUMENT PANEL LAMP SUPPLY VOLTAGE (from headlamp switch pin J via dimmer) C - PPL - FRONT FOG LAMPS SUPPLY VOLTAGE (from fog relay via fog relay fuse) D - ORN - FRONT FOG LAMP SWITCH SIGNAL (ground signal to BCM C3 pin B7) SURV MODE A - BLK/WHT - GROUND B - BLK - GROUND C - GRY - INSTRUMENT PANEL LAMP SUPPLY VOLTAGE (from headlight switch pin J via dimmer) D - PPL - SURVEILLANCE MODE SWITCH SIGNAL (ground signal to BCM C2 pin B7) Hopefully that all makes sense! If all the BCM's are the same... a little creative wiring/repinning and it should be an easy hookup. *FOR ANYONE INTERESTED: The headlight switch with the correct SURV MODE switch is available aftermarket. Airtex/wells PN #1S10809, $119.79 on Rockauto. **One more edit. Apparently there is a difference in BCM's between the two cars. Again, for a 2005 (Rockauto shows 200-2005 as a cross), the standard BCM is PN #15224204 and the 9C1 PN is #15224203. So it looks like a 9C1 BCM will be needed to properly activate the SURV MODE feature. Edited July 25, 2013 by alec_b Quote Link to comment Share on other sites More sharing options...
