Imp558

First Gen Coilover Thread ver: 2018

Recommended Posts

Okay cool. I may add them later if vibration becomes an issue but ultimately this is getting a built, intercooled L67 with 2 1/2" exhaust through a Thrush Welded series muffler and a Walbro 255 fuel pump. Where vibration noise is concerned I suppose I need to choose my battles.

You may wish to put the Torrington bearing on the bottom rather than the top. It will get a lot less exposure to grit and grime closer to the hub than higher up in the wheel well.

Share this post


Link to post
Share on other sites

I’ve always wondered about the 2gen swap. What donor did you use? Do you keep the oem control arm? Is this swap just to reduce bulk?



I wanted to get away from the First Gen Spindle assemblies and into a traditional one. Years ago Miko did a Second Gen subframe and all up front, I bought two new First Gen A-Arms and two new Second Gen A-Arms and had them cut and spliced. They bolt to the First Gen subframe and have Second Gen ball joints.



I'm booting the whole thing with those velcro boots after this summer so my plan is to put the bearings at the top like normal to keep water away from them and then inspect / replace next winter..

Share this post


Link to post
Share on other sites

I have never seen a bearing on the bottom. but on the top. grease them up. so long as they are seated you wont have an issue. the one major issue with the w-body is lack of travel when lowered. so long as you have a short stroke housing which im sure they offer for the gen2 they may even be shorter to begin with you wont have an issue... good stuff

Share this post


Link to post
Share on other sites

Summit salesman also thought I was crazy asking if there was a product to help protect the sleeve from the spring, Whoop! DER IT IS!



https://www.amazon.com/Allstar-Performance-ALL64201-Shock-Protector/dp/B00F0CE8L0



Dumbass, I should call back and try to get a salesman that knows something, I bet the 2 1/8" ID isolators are intended for 2 1/2" coilovers and the dipshit didn't know because him and his Honda Homeboys never deemed it necessary.



Summit salesman also thought I was crazy asking if there was a product to help protect the sleeve from the spring, Whoop! DER IT IS!



https://www.amazon.com/Allstar-Performance-ALL64201-Shock-Protector/dp/B00F0CE8L0



Dumbass, I should call back and try to get a salesman that knows something, I bet the 2 1/8" ID isolators are intended for 2 1/2" coilovers and the dipshit didn't know because him and his Honda Homeboys never deemed it necessary.

I didn't know these existed.  I've got wear on my sleeves from the springs and would've tried these if I knew about them.

Share this post


Link to post
Share on other sites

I need to get all my suspension stuff out as well for my 94 CS, doing the rear struts first. Those rear strut plates, the factory ones need to be modified so that the bell shaped seat can fit right? Its been too long reading about this and Ive got 80% of the parts.

Share this post


Link to post
Share on other sites

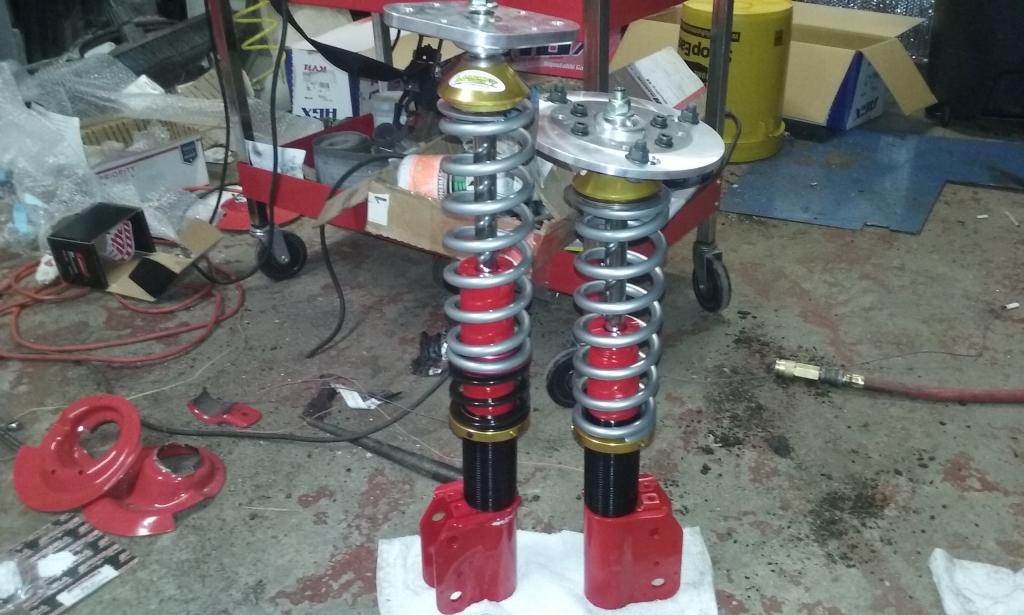

I posted this in my GS thread, one rear and one front. I just ordered the other two springs and bumpers last night. I actually disassembled them after this picture so I could put those plastic tubes back on them until I'm ready. The adjustment things on the ends of the shafts are plastic and don't look durable. One is already a little tweaked just from shipping so the tubes are protecting them.




Share this post


Link to post
Share on other sites

MemphisMan has done a nice write-up on rear coilovers using KYB Excel-G struts and 250# QA1 springs.

He's got p/n's, a couple videos, and oodles of pictures on the 7th page of his '91 Cutlass build thread.

He did not use tenders though, so this is a traditional rear coilover conversion.



Share this post


Link to post
Share on other sites

AGX struts are less than optimum for a first gen. They're a couple inches longer than stock.

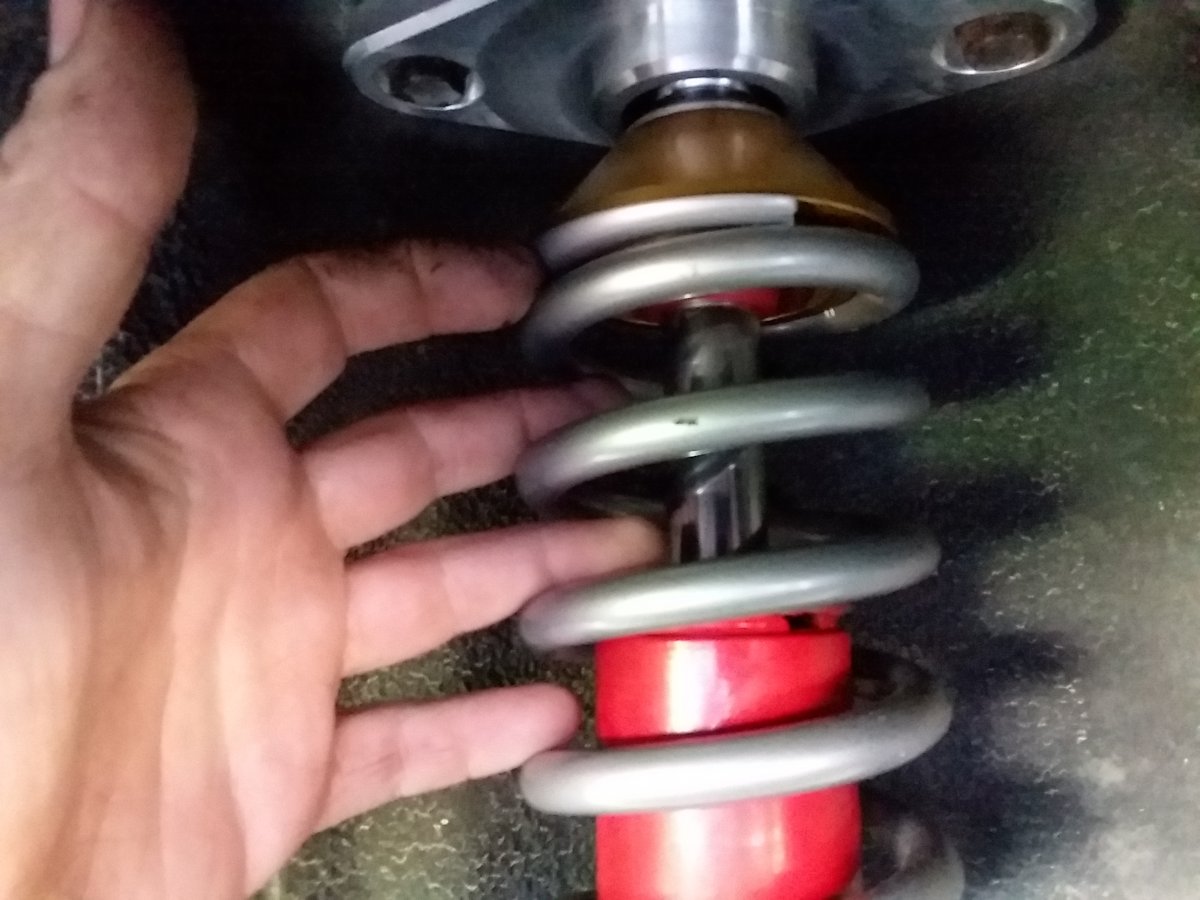

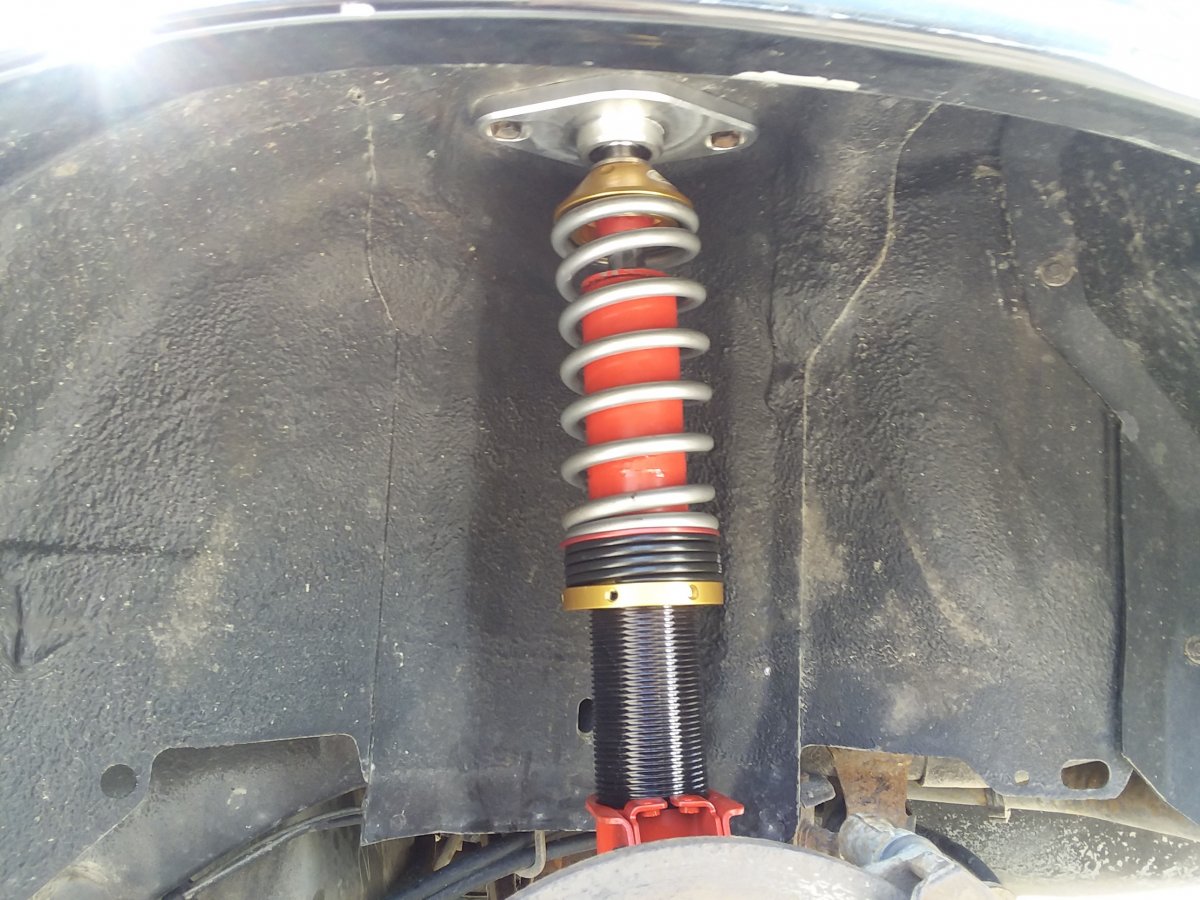

In the first picture is my 225# rear spring with about 1.5" of suspension travel.  I'm going to order some 12", or maybe 14" springs but for now I stuck the front 325# springs in the back and got about 3" of travel in the second picture. The 325# springs are very firm, almost mining cart kind of firm but honestly I think I like it.

I may do some longer 300# springs in the back and maybe 400# up front but I'm gonna drive this for a week and mull it over.




Share this post


Link to post
Share on other sites
