Rear passenger side brake line routing


Recommended Posts

Hey guys,

Got myself into a honeydoodle of a melon scratcher due to my usual mistake of not taking pictures before I take something apart.

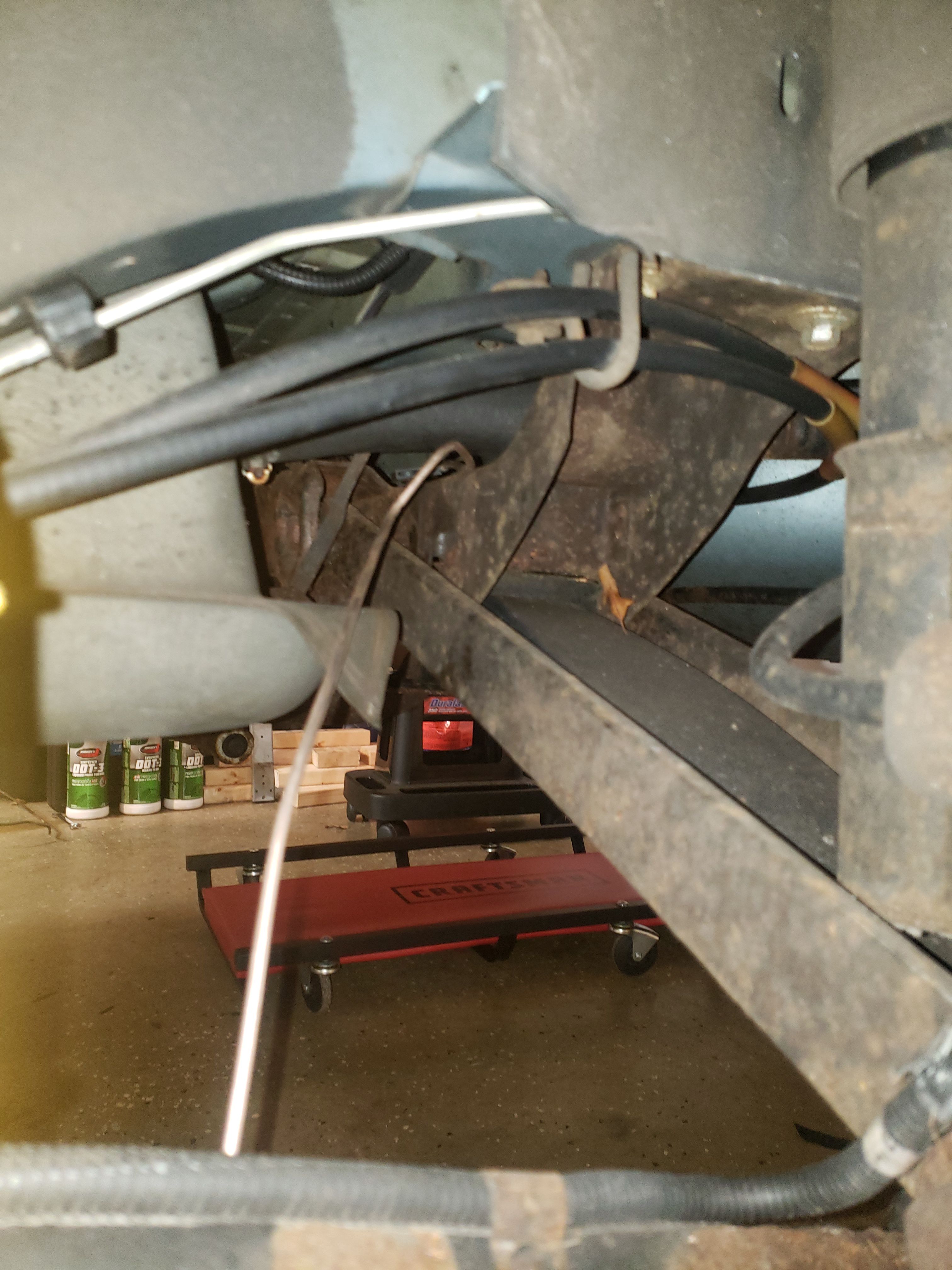

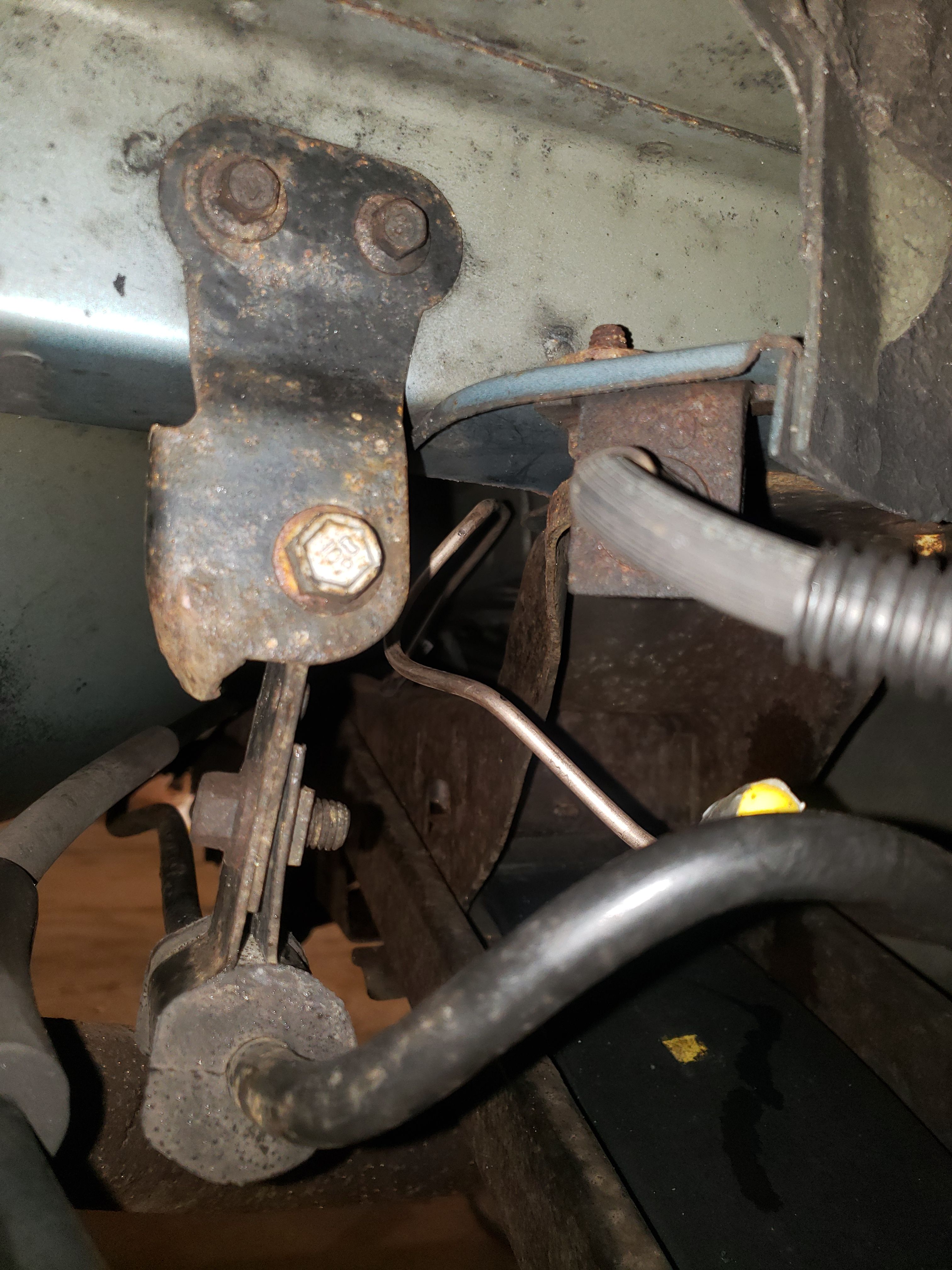

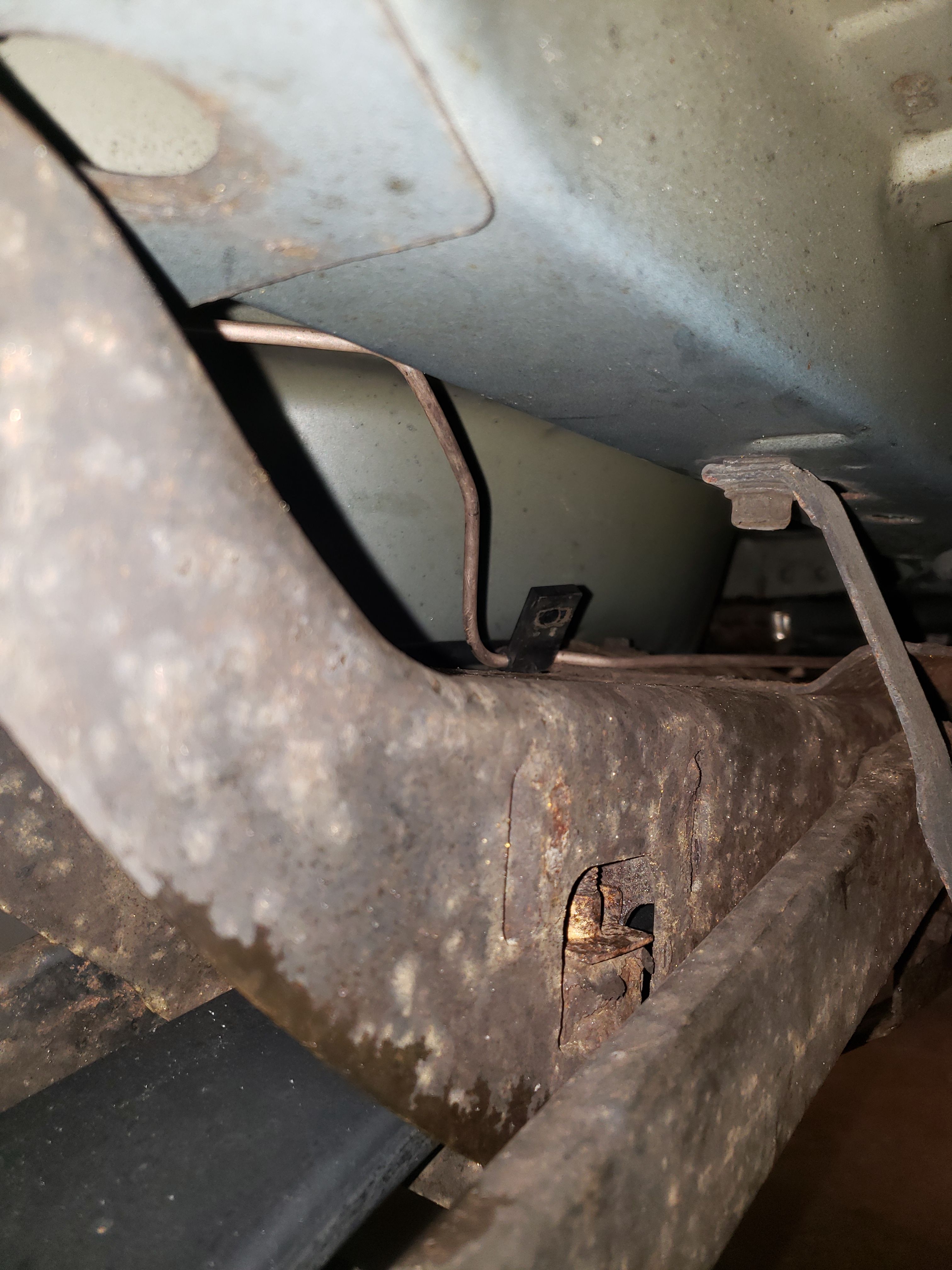

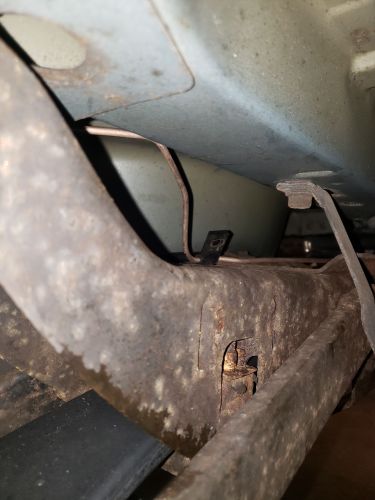

The brake line running to the rear passenger caliper had some pretty bad patches of rust, so I changed it out with a nicopp line. I was wondering if someone was lucky enough to have photos of how the line is oriented coming in and out of the subframe, just to give me a hand with positioning it properly.

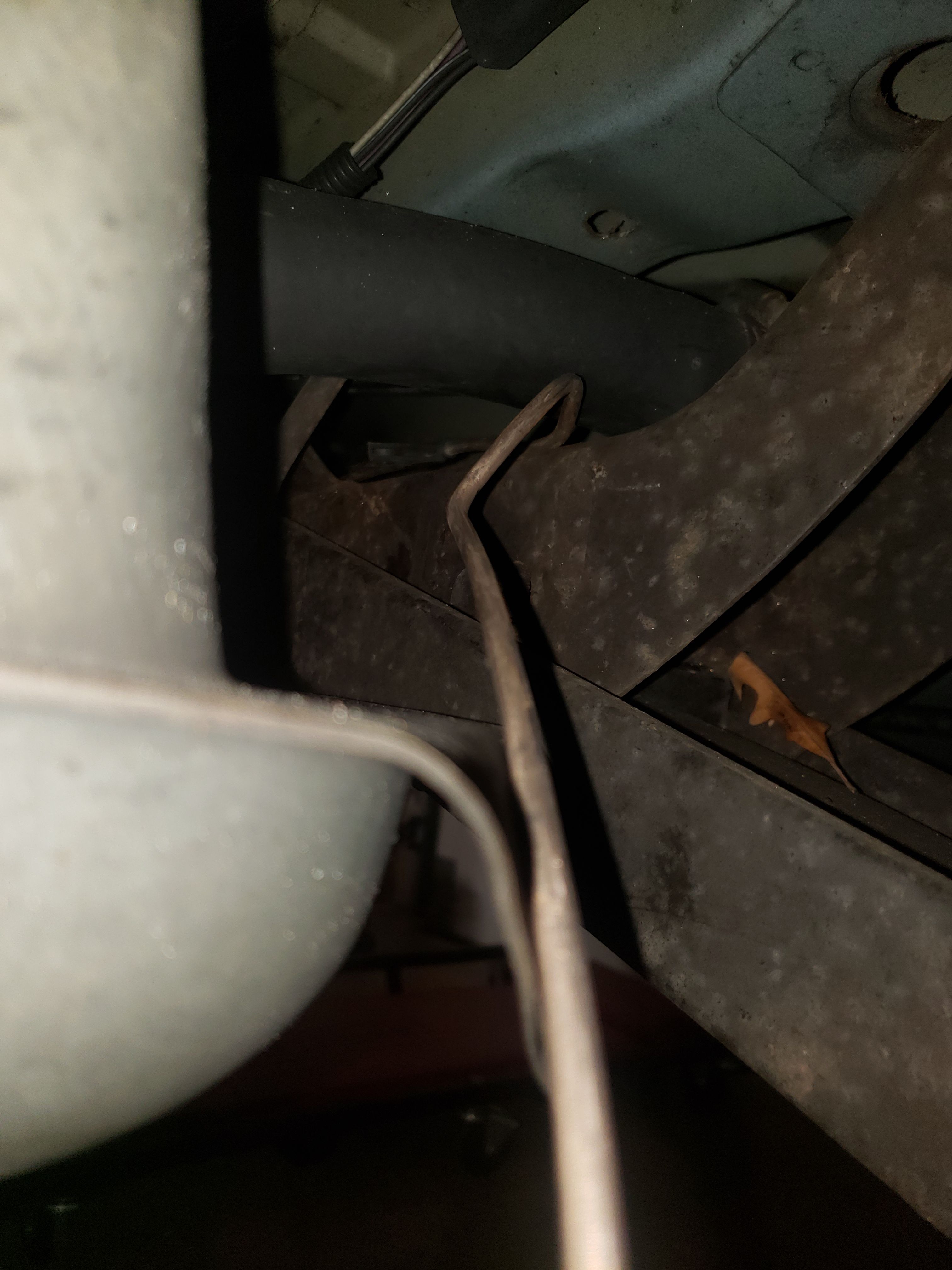

Ignore the current position of the line in the photos, I just threaded it through and let it dangle.

Any help is very much appreciated.





Link to comment
Share on other sites

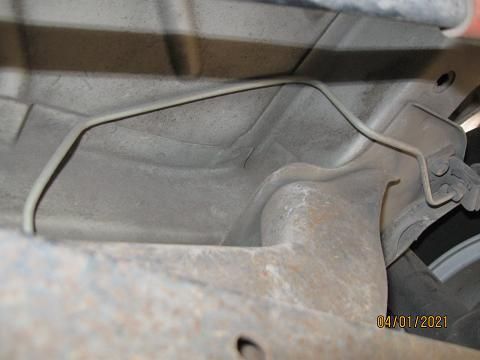

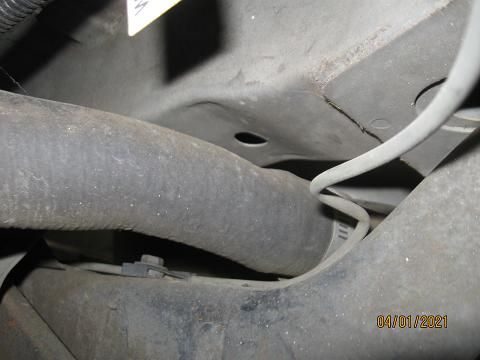

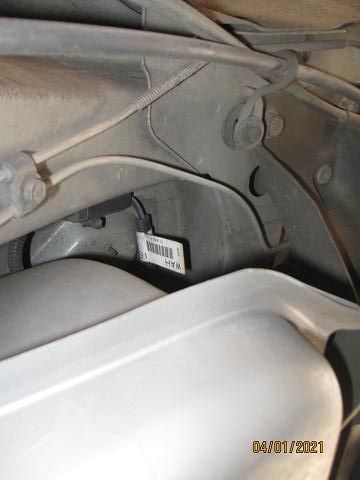

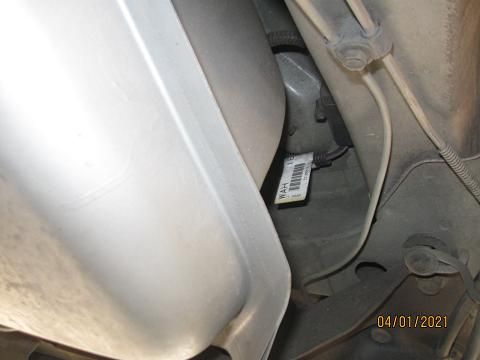

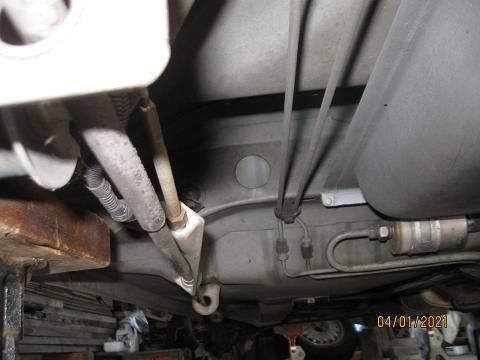

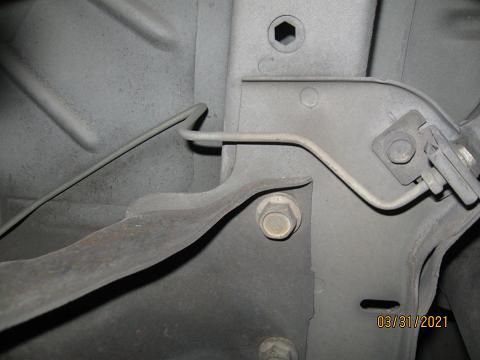

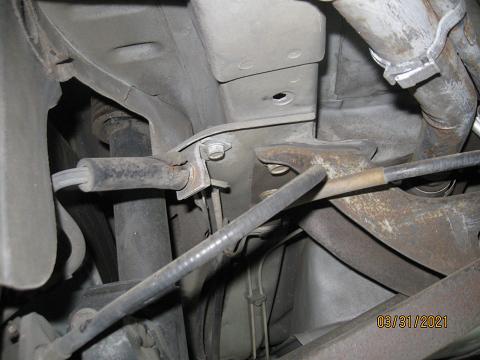

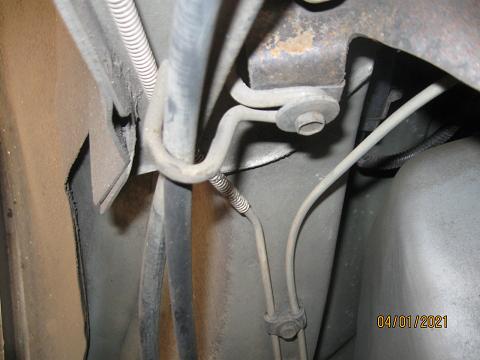

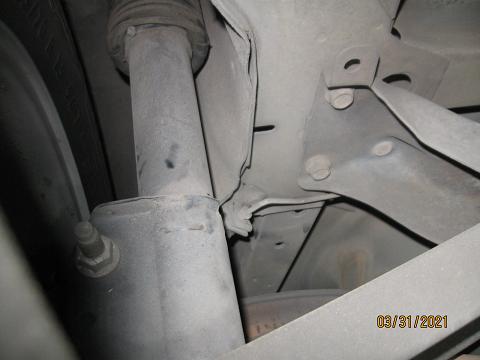

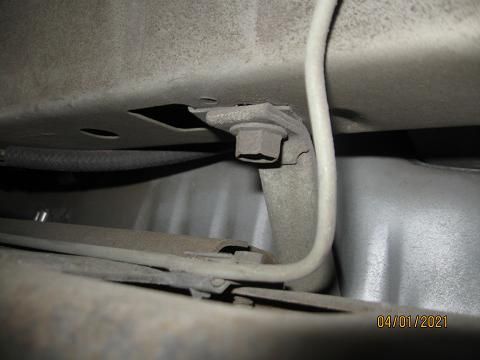

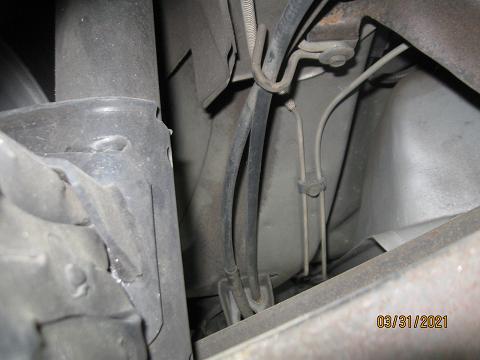

These pictures show Rear Passenger side brake line routing from Drivers side to Passengers side. There are two brake line hold down clips on top of the leaf spring support.
