The Parts Number Thread!!


White93z34
 Share

Recommended Posts

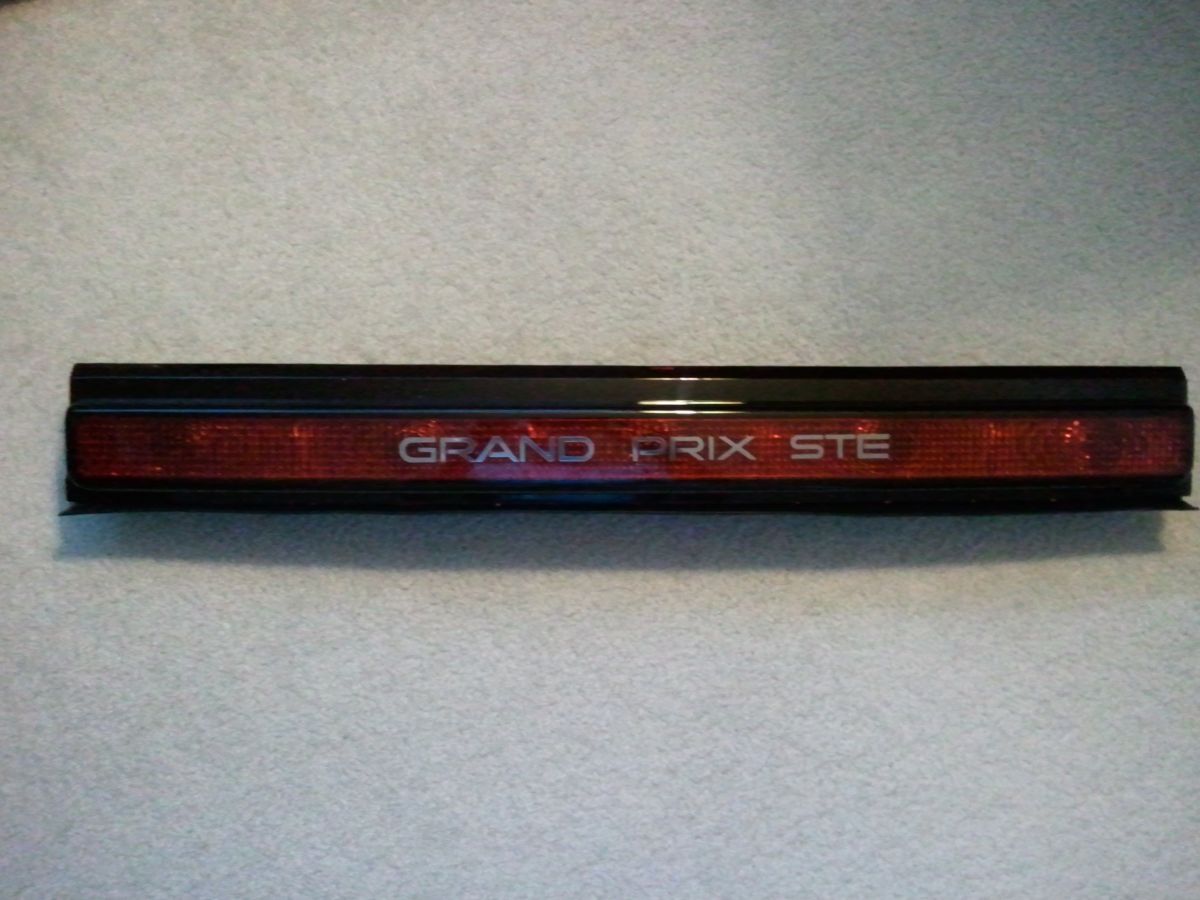

Pontiac Grand Prix rear light bar housing.  Part #16508565.

Pontiac Grand Prix STE rear light bar lens (STE specific).  Part #16508573.

Pontiac Grand Prix rear light bar bulb gaskets (foam pieces that seals to the body and surrounds the bulbs).  Part #16508572.



2018-11-25 10.57.46.jpg

Link to comment
Share on other sites

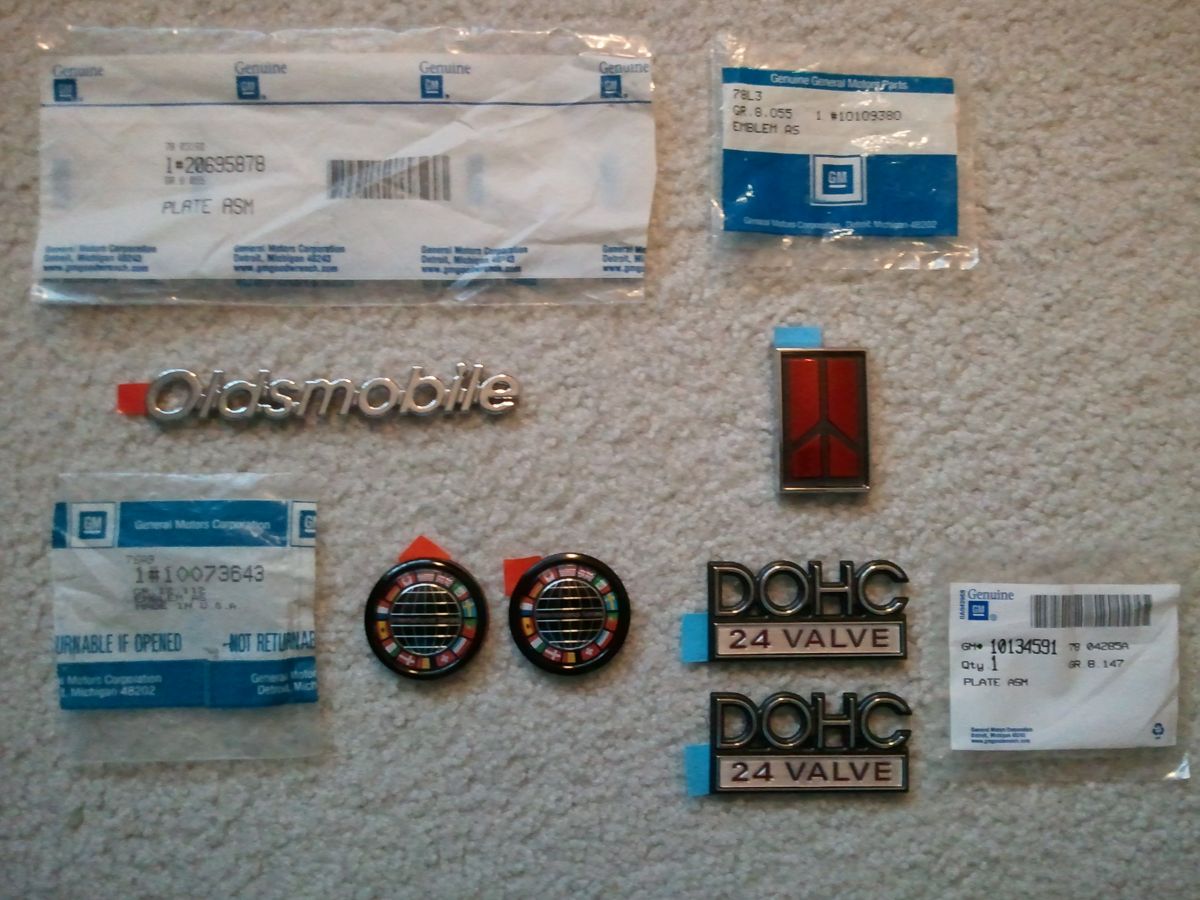

1988-1991 CS hood "Oldsmobile" emblem.  Part #20695878.

1988-1993 CS International Series emblems (used on center console, both front doors, and trunk lid, certain years).  Part #10073643.

1988-1991 CS Oldsmobile Rocket center hood emblem (between the front grills).  Part #10109380.

1991-1997 CS DOHC 24 VALVE fender emblems.  Part #10134591.



2018-11-25 11.04.04.jpg

Link to comment
Share on other sites

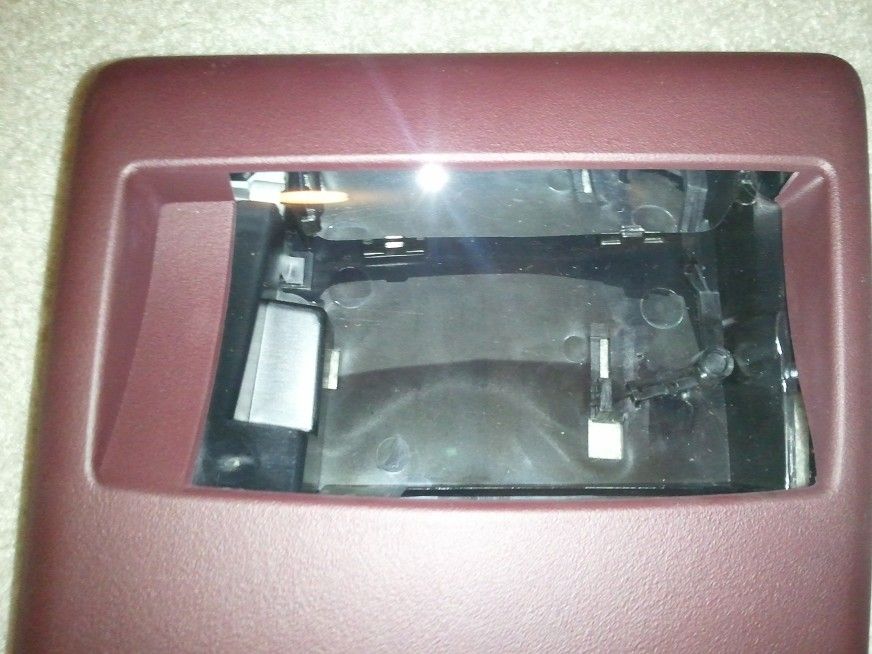

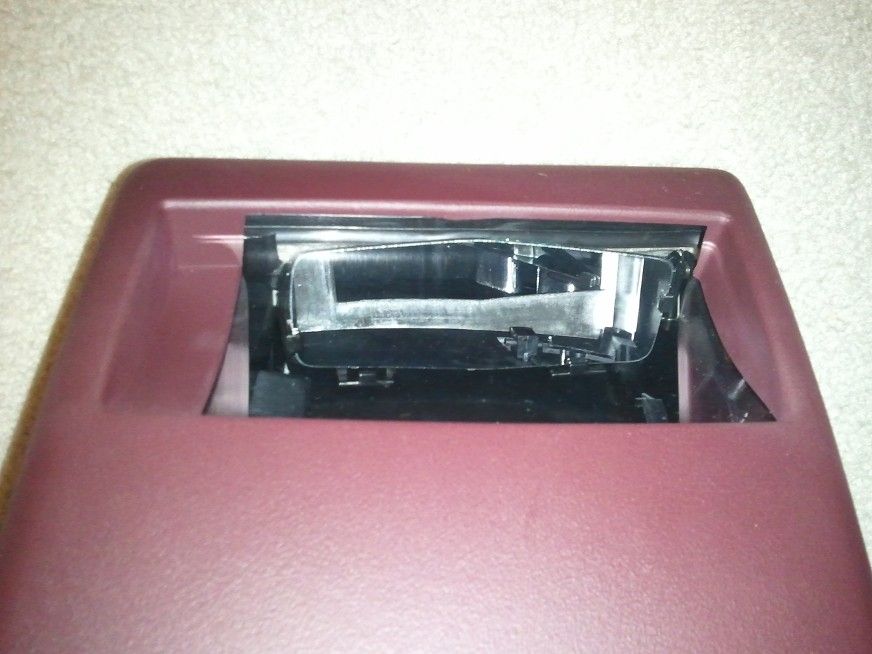

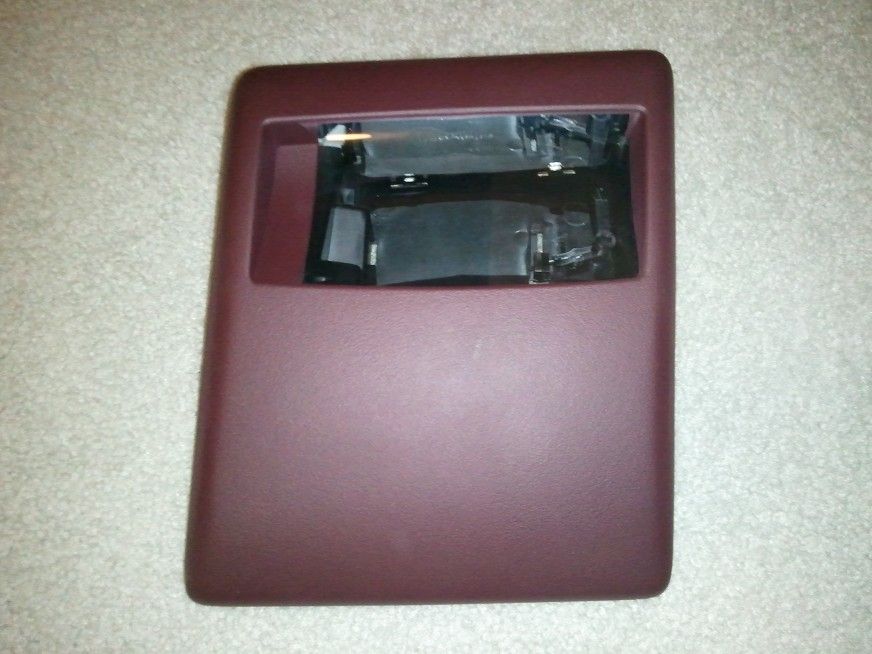

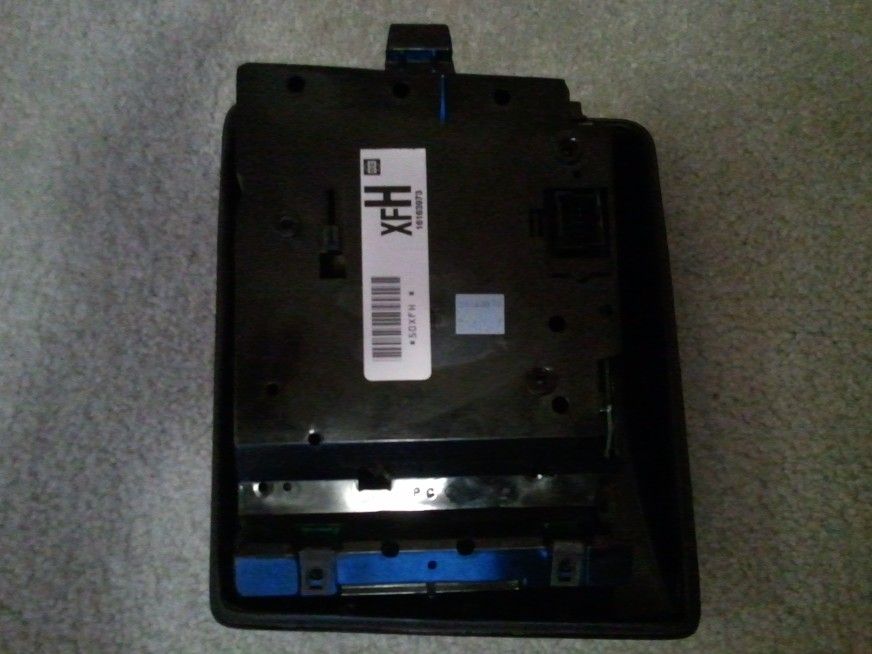

1991-1994 CS HUD (Heads Up Display).  Please note: this is for the HUD body with internal electronics.  Decorative cover (Garnet Red shown) comes in different colors to match interior of that particular car and may have a different part #.  Part #16163973.







Link to comment
Share on other sites

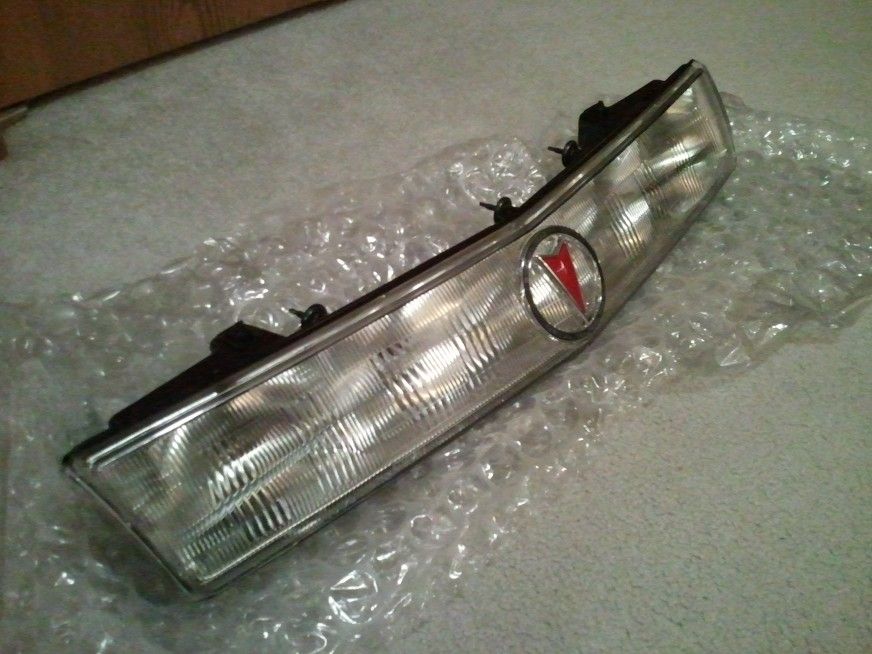

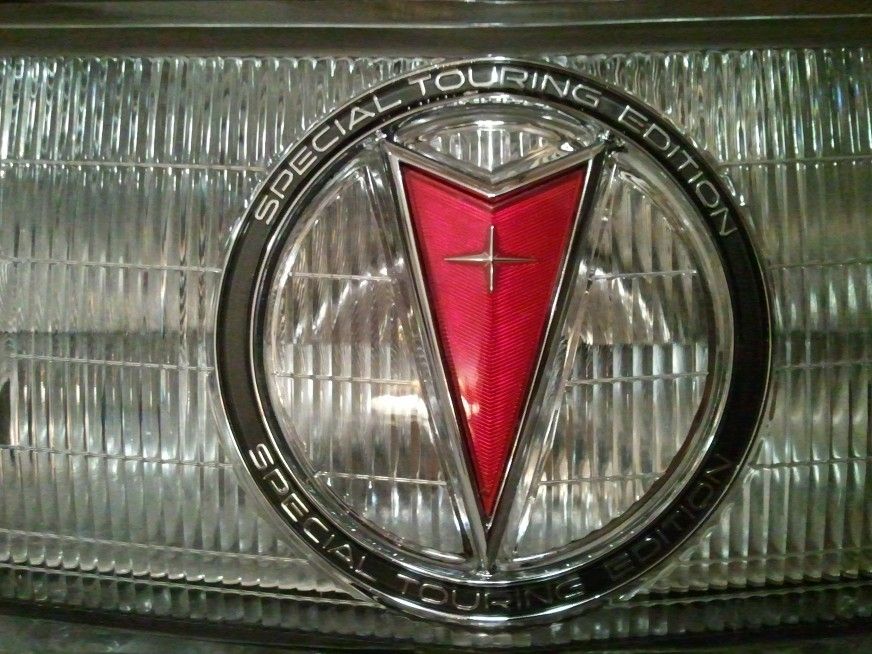

1990-1993 Pontiac Grand Prix STE front light bar emblem (STE specific).  This is the red Pontiac arrow with "Special Touring Edition" lettering.  Part #16503785.




Edited by jiggity76
Link to comment
Share on other sites

1990-1996 Pontiac Grand Prix front light bar housing.  Please note: this is not the lens, just the body or housing to which the lens mounts too.  The lens will be trim specific.  Part #16511882.




Link to comment
Share on other sites

  • 2 years later...

Here's some more, some odd ones I actually may end needing...

Accelerator Pedal Lever Support

Part #: 25509808

Accelerator Lever Support Stud

Part #: 25509840

Lever Assembly, Accelerator Pedal

Part #: 12550602

Accelerator Pedal Lever Plate

Part #: 14094925

Accelerator control cable retainer, dash panel

Part #: 25607608

Nut Spg push on 11 diameter

Part #: 11501927

Cup Holder, Front Seat Folding Storage Armrest *Ebony

Part #: 12518654

Link to comment
Share on other sites

Anti Lock Brakes

ABS Pump And Motor Assembly (18019214)

ABS Modulator (18060806) or (18024456)


ABS Relay (12088595)


ABS Wheel Speed Sensor ((10456116))


Brake Fluid Level Sensor (18012741)


Brake Master Cylinder Reservoir (19209212)


Modulator Lower Cover (18021868)


ABS Pressure Modulator Valve Motor Kit (18024456)


Master Cylinder (18029914)


Control Module (16154594)


Control Module Bracket (10063521)


Wire Harness Left Front (12140219)


Wire Harness Right Front (12167648)


Black Multi Purpose Relay for ABS (13502674)


Brake Fluid Level Sensor (18012741)
Main Relay (12088595)

Black ABS Wheel Speed Sensor (10456116)





Link to comment
Share on other sites

5 hours ago, Bjankins1 said:

Here's some more, some odd ones I actually may end needing...

Accelerator Pedal Lever Support

Part #: 25509808

Accelerator Lever Support Stud

Part #: 25509840

Lever Assembly, Accelerator Pedal

Part #: 12550602

Accelerator Pedal Lever Plate

Part #: 14094925

Accelerator control cable retainer, dash panel

Part #: 25607608

Nut Spg push on 11 diameter

Part #: 11501927

Cup Holder, Front Seat Folding Storage Armrest *Ebony

Part #: 12518654



5 hours ago, Bjankins1 said:

Anti Lock Brakes

ABS Pump And Motor Assembly (18019214)

ABS Modulator (18060806) or (18024456)


ABS Relay (12088595)


ABS Wheel Speed Sensor ((10456116))


Brake Fluid Level Sensor (18012741)


Brake Master Cylinder Reservoir (19209212)


Modulator Lower Cover (18021868)


ABS Pressure Modulator Valve Motor Kit (18024456)


Master Cylinder (18029914)


Control Module (16154594)


Control Module Bracket (10063521)


Wire Harness Left Front (12140219)


Wire Harness Right Front (12167648)


Black Multi Purpose Relay for ABS (13502674)


Brake Fluid Level Sensor (18012741)
Main Relay (12088595)

Black ABS Wheel Speed Sensor (10456116)





Which ones do you need?  I might be able to help and thank you for posting them.
