Posted 12 March 2018 - 12:57 AM

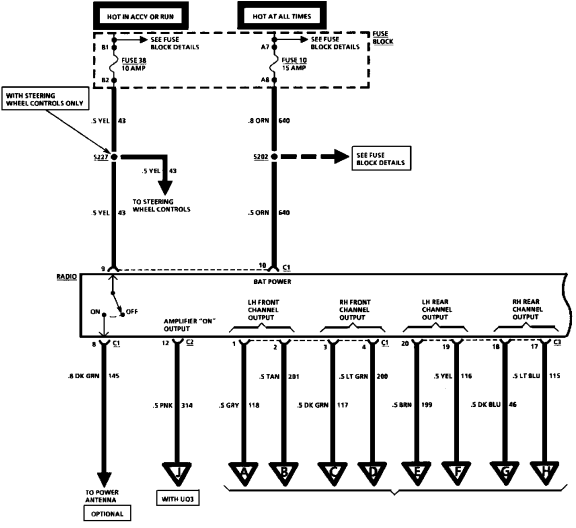

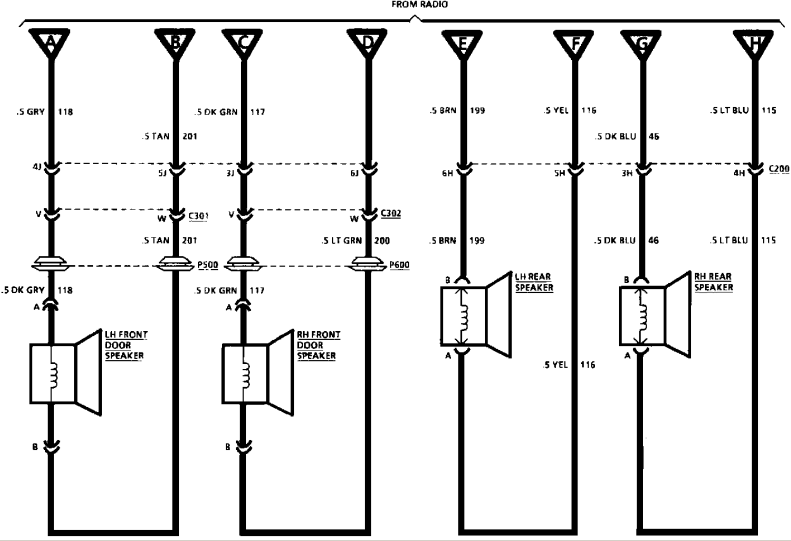

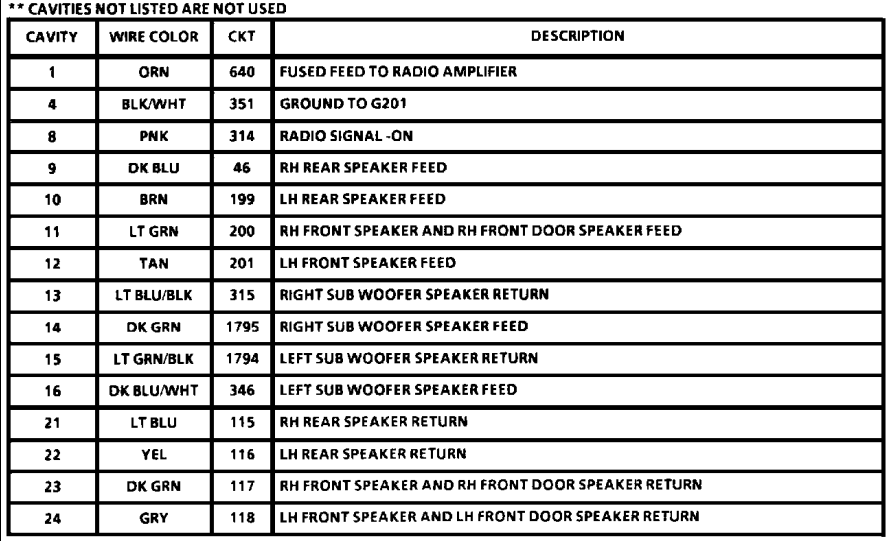

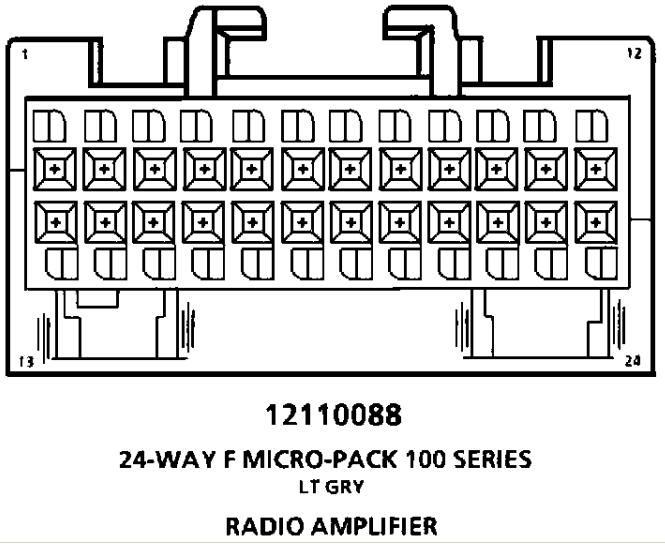

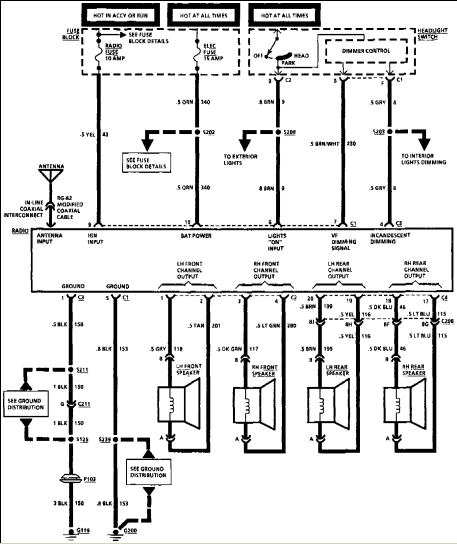

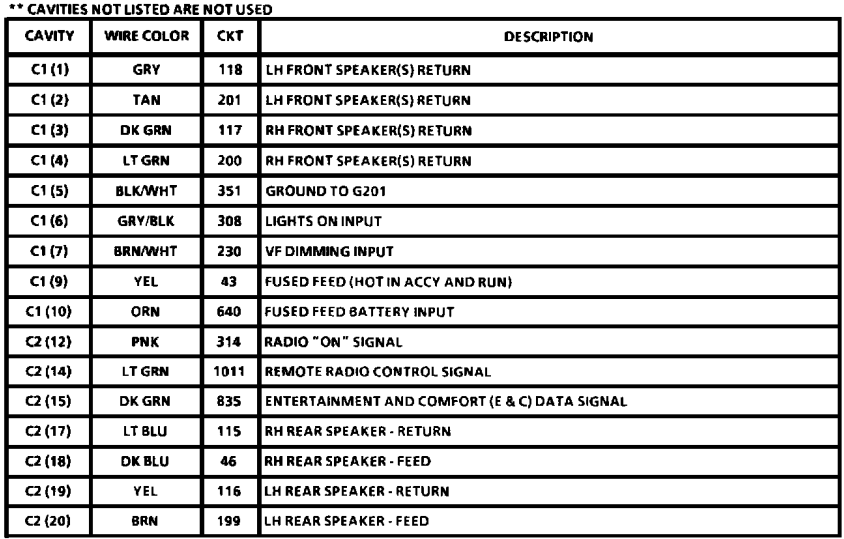

1994 Lumina:

Attached File  94lumina.PNG   65.15KB   1 downloads

Attached File  94lumina2.PNG   58.61KB   1 downloads



U1C:

Attached File  94lumina.PNG   65.15KB   1 downloads

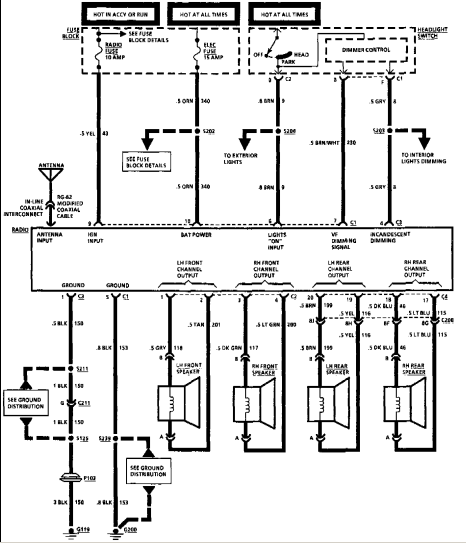

UM6:

Attached File  94luminaum6.PNG   64.77KB   1 downloads



UM7:

Attached File  94luminaum7.PNG   64.71KB   1 downloads

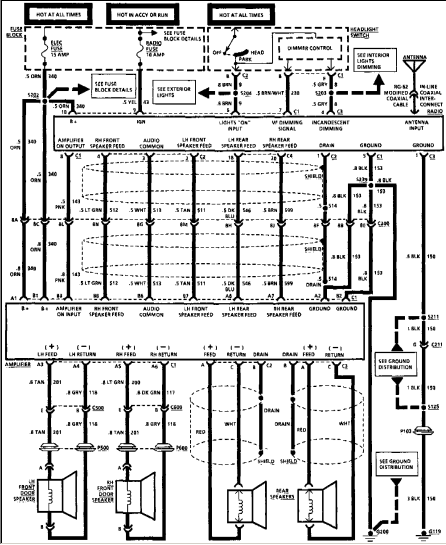

UQ4:

Attached File  94luminauq4.PNG   87.05KB   1 downloads



UU8:

Attached File  94luminauu8.PNG   87.38KB   1 downloads



No idea why UM7 is also attached.

Attached Files


Edited by Imp558, 12 March 2018 - 01:12 AM.

  • ManicMechanic and wstefan20 like this


"If everything seems under control, you're not going fast enough" - Mario Andretti

1996 Buick Regal L67/4T65E-HD swapped - 1995 Buick Regal GS - 1980 Dodge Sno-Commander - 1968 Empi Imp on '67 Pan - 2001 Chevrolet Express 3500

Her Stuff: 1996 SSEi - 2001 Monte Carlo SS


#2 Imp558

Imp558

    Proud TransCelestialsexual

  • Moderators
  • 5,475 posts
  • LocationErie PA.

Posted 12 March 2018 - 01:01 AM

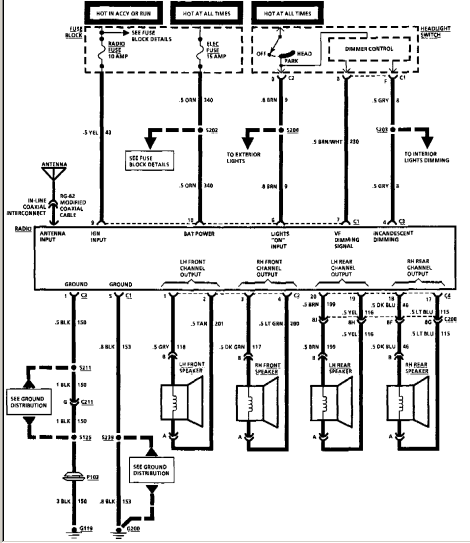

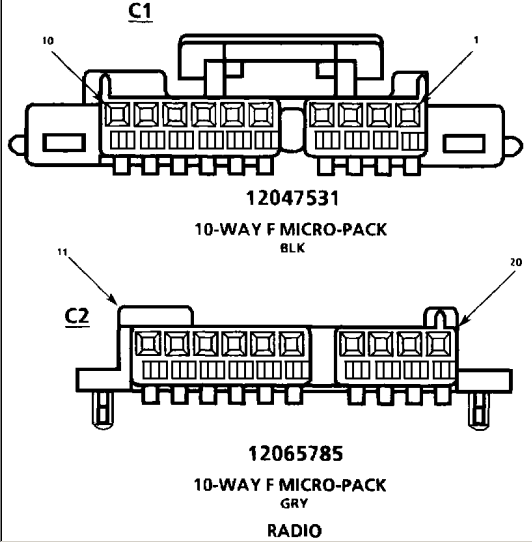

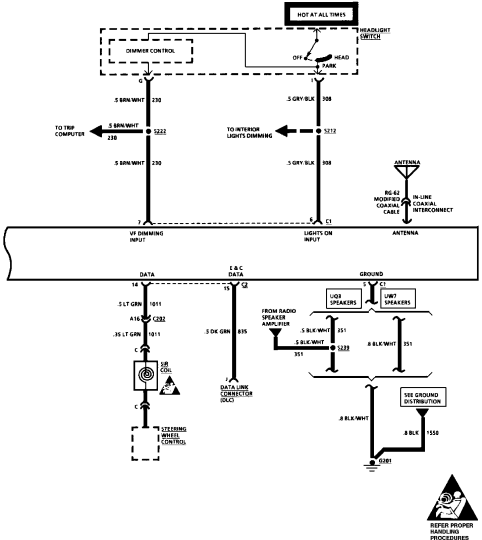

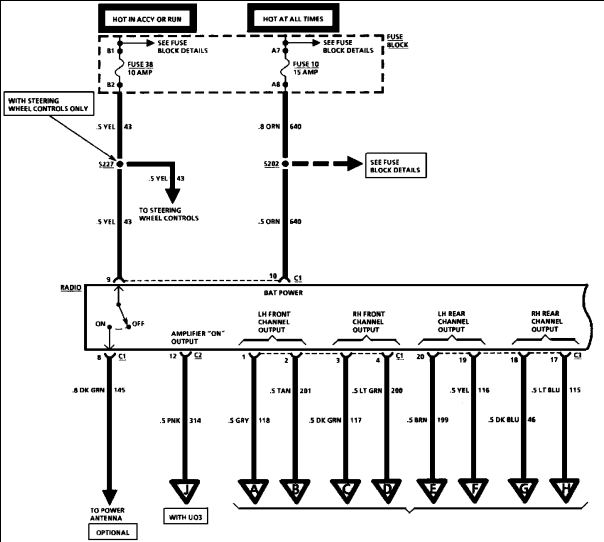

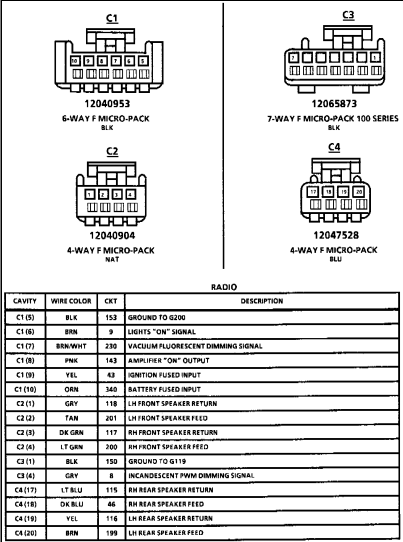

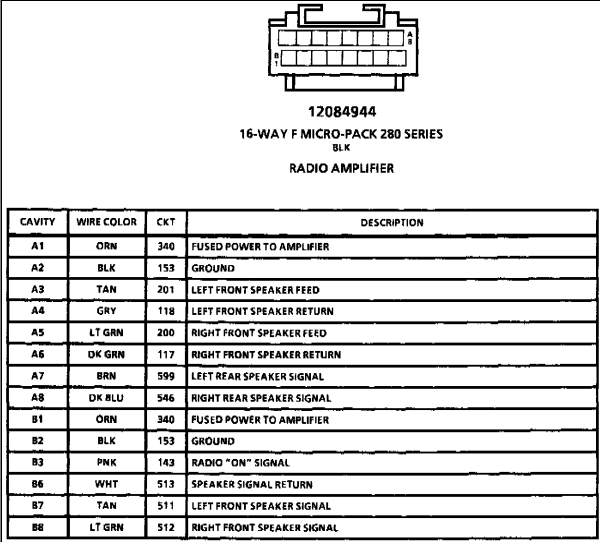

1994 GP:



Attached File  94gp1.PNG   47.23KB   1 downloads

Attached File  94gp2.PNG   83.73KB   1 downloads

Attached File  94gp3.PNG   49.98KB   1 downloads

Attached File  94gp4.PNG   84.89KB   1 downloads

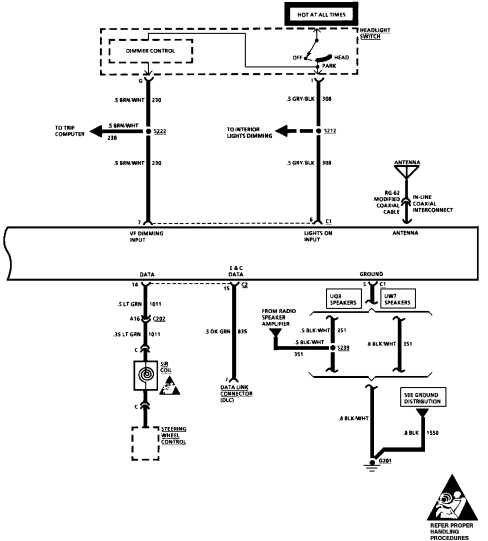

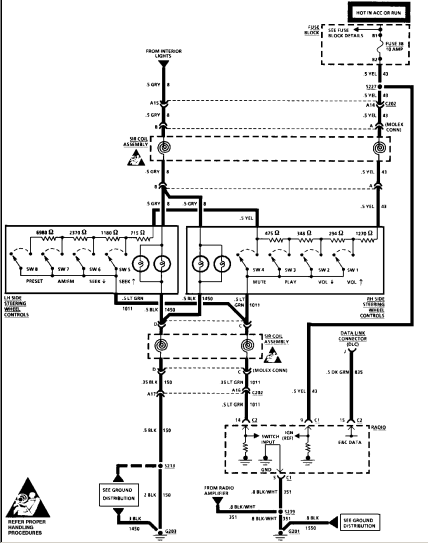

Steering Wheel Controls:

Attached File  94gpwheel.PNG   54.29KB   1 downloads

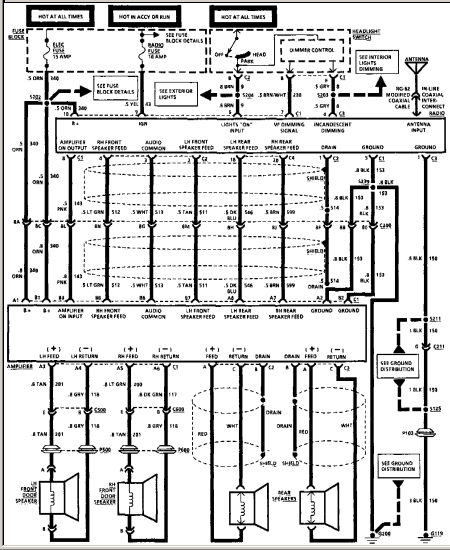

UX7:

Attached File  ux71.PNG   54.58KB   1 downloads



Attached File  ux72.PNG   44.28KB   1 downloads



Attached File  ux73.PNG   60.14KB   1 downloads

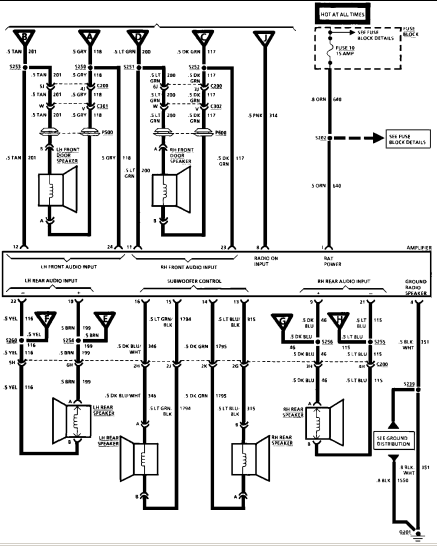

UQ3:

Attached File  uq31.PNG   52KB   1 downloads



Attached File  uq32.PNG   44.46KB   1 downloads



Attached File  uq33.PNG   57.5KB   1 downloads


Edited by Imp558, 12 March 2018 - 01:04 AM.

  • ManicMechanic likes this


"If everything seems under control, you're not going fast enough" - Mario Andretti

1996 Buick Regal L67/4T65E-HD swapped - 1995 Buick Regal GS - 1980 Dodge Sno-Commander - 1968 Empi Imp on '67 Pan - 2001 Chevrolet Express 3500

Her Stuff: 1996 SSEi - 2001 Monte Carlo SS


#3 wstefan20

wstefan20

    Advanced Member

  • Members
  • PipPipPip
  • 433 posts
  • LocationRaytown, MO

Posted 12 March 2018 - 03:02 AM

nice resource! One day I'll make a post of gp ones like this! Lol

#4 jiggity76

jiggity76

    91 International LQ1 - 93 GP STE LQ1

  • Members
  • PipPipPipPip
  • 2,221 posts
  • LocationAmes, IA

Posted 12 March 2018 - 03:16 AM

I don't know what that all means, but you are one smart dude Imp!



#5 Imp558

Imp558

    Proud TransCelestialsexual

  • Moderators
  • 5,475 posts
  • LocationErie PA.

Posted 12 March 2018 - 07:08 AM

Oh, not smart I drool like a Labrador and pick my nose in public. Another member requested that info.
  • jiggity76 and wstefan20 like this


"If everything seems under control, you're not going fast enough" - Mario Andretti

1996 Buick Regal L67/4T65E-HD swapped - 1995 Buick Regal GS - 1980 Dodge Sno-Commander - 1968 Empi Imp on '67 Pan - 2001 Chevrolet Express 3500

Her Stuff: 1996 SSEi - 2001 Monte Carlo SS


#6 jiggity76

jiggity76

    91 International LQ1 - 93 GP STE LQ1

  • Members
  • PipPipPipPip
  • 2,221 posts
  • LocationAmes, IA

Posted 12 March 2018 - 01:33 PM

Oh, not smart I drool like a Labrador and pick my nose in public. Another member requested that info.

You constantly crack me up!  I always look forward to what you have to say!



#7 Imp558

Imp558

    Proud TransCelestialsexual

  • Moderators
  • 5,475 posts
  • LocationErie PA.

Posted 13 March 2018 - 03:41 AM

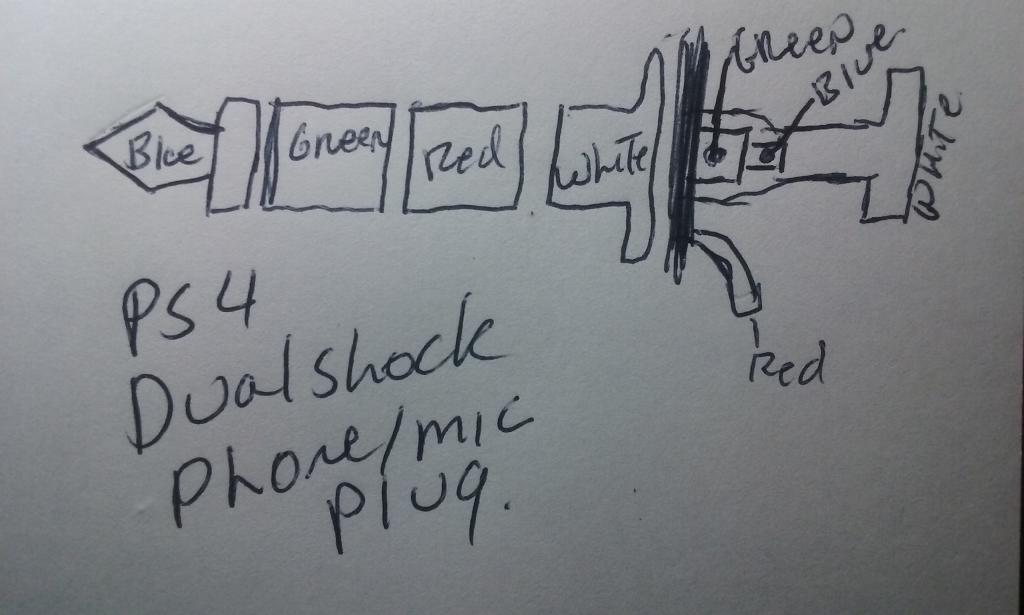

Well this doesn't have anything to do with anything we do here but we are now the only forum with the technology readily available to solder a new plug on a dualshock headset.

This diagram was a bitch to make, the things are molded out of plastic and all the wires in were fubar when my Son gave it to me to fix.



Attached File  20180312_233207.jpg   58.61KB   1 downloads


Edited by Imp558, 13 March 2018 - 03:44 AM.
