On the radiator side of the transmission cooler lines which one is the supply line and which one is the return line (i.e. upper and lower)?



Thanks!



#2 rich_e777

rich_e777

    Interweb SortAScrub

  • Contributing Member
  • 2,046 posts
  • LocationNashville,TN

Posted 07 December 2017 - 01:32 PM

Which engine? In my experience with the lines they look similar but will only connect one way with trying to stretch or bend it in a certain way.



#3 wstefan20

wstefan20

    Member

  • Members
  • PipPip
  • 82 posts
  • LocationRaytown, MO

Posted 07 December 2017 - 02:08 PM

If you're dealing with the 4T65E, here's the schematics you'll need:









so as you can see, feed is bottom, return is top. Feed line has a check ball (do not remove/alter this fitting, trust me)



Hope this helps!


  • Imp558 and vipmiller803 like this

#4 Imp558

Imp558

    Proud TransCelestialsexual

  • Contributing Member
  • 3,867 posts
  • LocationErie PA.

Posted 07 December 2017 - 04:31 PM

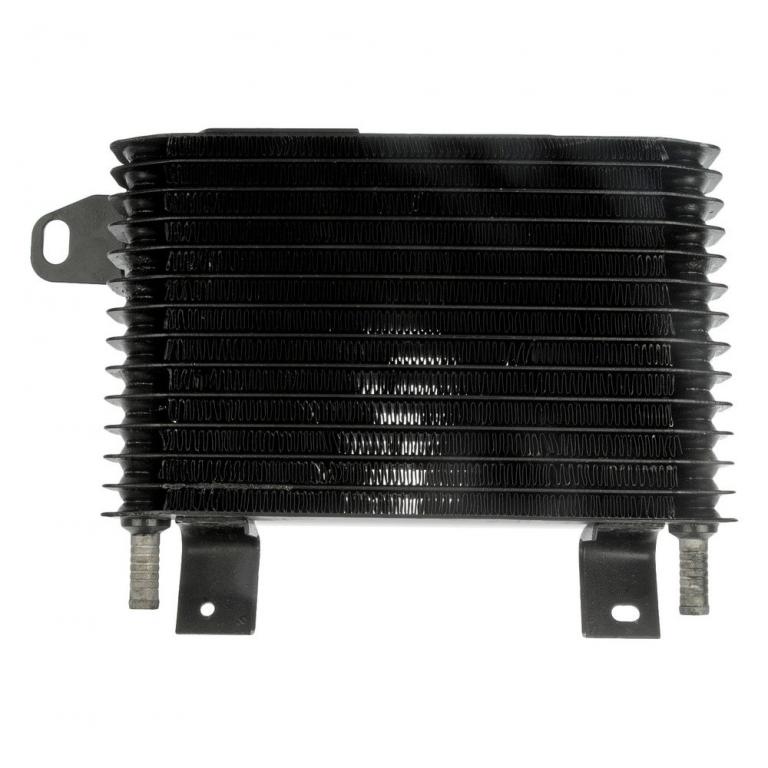

I'm not sure what you're working on but if you are having tranny cooler issues the one that comes out of a Ford Explorer is a really cool bar & plate cooler with hose barbs. I pick them up cheap and put them on our cars and they run cool as hell.



Attached File  918-200.jpg   54.36KB   0 downloads


  • rich_e777 likes this



"If everything seems under control, you're not going fast enough"  - Mario Andretti



1996 Regal L67/4T65E-HD swapped - 1995 Buick Regal GS - 1980 Dodge Sno-Commander - 1968 Empi Imp on '67 Pan - 2001 Chevrolet Express 3500


#5 Galaxie500XL

Galaxie500XL

    Senior Member

  • Contributing Member
  • 2,609 posts
  • LocationKnoxville, Tennessee

Posted 07 December 2017 - 05:09 PM

On my ‘95 Cutlass, I installed a transmission cooler from an early 3.8 Regal. Bolted right up. Not sure that this would hold true for newer cars, though.



Here’s a discussion about that from several years ago.

http://www.w-body.co...n-cooler-lines/


Edited by Galaxie500XL, 07 December 2017 - 07:32 PM.

  • Imp558 likes this
galaxie500xl

1988 Camaro IROC-Z 5.7 TPI 5-speed

2011 Chevrolet Equinox LT

GONE to a new home... 1995 Cutlass DOHC Convertible, 3rd Quarter 2012 W-Body.com COTQ






#6 Schurkey

Schurkey

    Senior Member

  • Members
  • PipPipPipPip
  • 1,596 posts

Posted 07 December 2017 - 07:21 PM

On cross-flow radiators with vertical tanks, the lower fitting is almost always the "hot" fluid, and the upper fitting is almost always the "cooled, ready to go back to the transmission" fluid.



Put another way, the hottest fluid is closest to the radiator coolant outlet--the "lower radiator hose".


  • Galaxie500XL and Imp558 like this
"The most negative fricken troll ever." --Bee Twenty

#7 stuhrling

stuhrling

    Member

  • Members
  • PipPip
  • 12 posts

Posted 07 December 2017 - 11:22 PM

Hi All,



Thanks so much for your responses. I am sorry that I forgot to state what model car and engine I was speaking of in my question. One of those 3:00am senior moments! The vehicle is an 02 Olds intrigue 3.5L. I am going to be installing a trans cooler on this vehicle and wanted to get things down right before I jumped on it.



wstefan20 This is exactly what I am looking for! I appreciate the diagram as it is very helpful as is the heads up on the check ball. See, good thing I waited and checked things out with those in the know before diving in!

Proud TransCelestialsexual This looks like a serious cooler. Something like this just might work!



Any suggestions, or additional things I might need to know before attempting this please let me know!


  • Imp558 and wstefan20 like this

#8 Imp558

Imp558

    Proud TransCelestialsexual

  • Contributing Member
  • 3,867 posts
  • LocationErie PA.

Posted 07 December 2017 - 11:43 PM

Hi All,



Thanks so much for your responses. I am sorry that I forgot to state what model car and engine I was speaking of in my question. One of those 3:00am senior moments! The vehicle is an 02 Olds intrigue 3.5L. I am going to be installing a trans cooler on this vehicle and wanted to get things down right before I jumped on it.



wstefan20 This is exactly what I am looking for! I appreciate the diagram as it is very helpful as is the heads up on the check ball. See, good thing I waited and checked things out with those in the know before diving in!

Proud TransCelestialsexual This looks like a serious cooler. Something like this just might work!



Any suggestions, or additional things I might need to know before attempting this please let me know!



The Exploder cooler I always flush them really well on my parts washer since I don't want what's left of a Ford transmission in mine. For a bracket I just used some steel channel I had laying around for an old shelving unit or something. I tried to find a picture but it's hiding. If I find a pic I'll post it but in the meantime here's a picture of a couple of dingy broads rowing a rowboat backwards.



Attached File  CAM00556.jpg   71.31KB   0 downloads


Edited by Imp558, 07 December 2017 - 11:44 PM.
