4T60HD

gp gs hd parts pics tgp transmission

  • Please log in to reply
9 replies to this topic

#1 Heartbeat1991

Heartbeat1991

    Senior Member

  • Contributing Member
  • 1,518 posts
  • LocationWest Warwick, RI

Posted 25 June 2015 - 11:31 PM

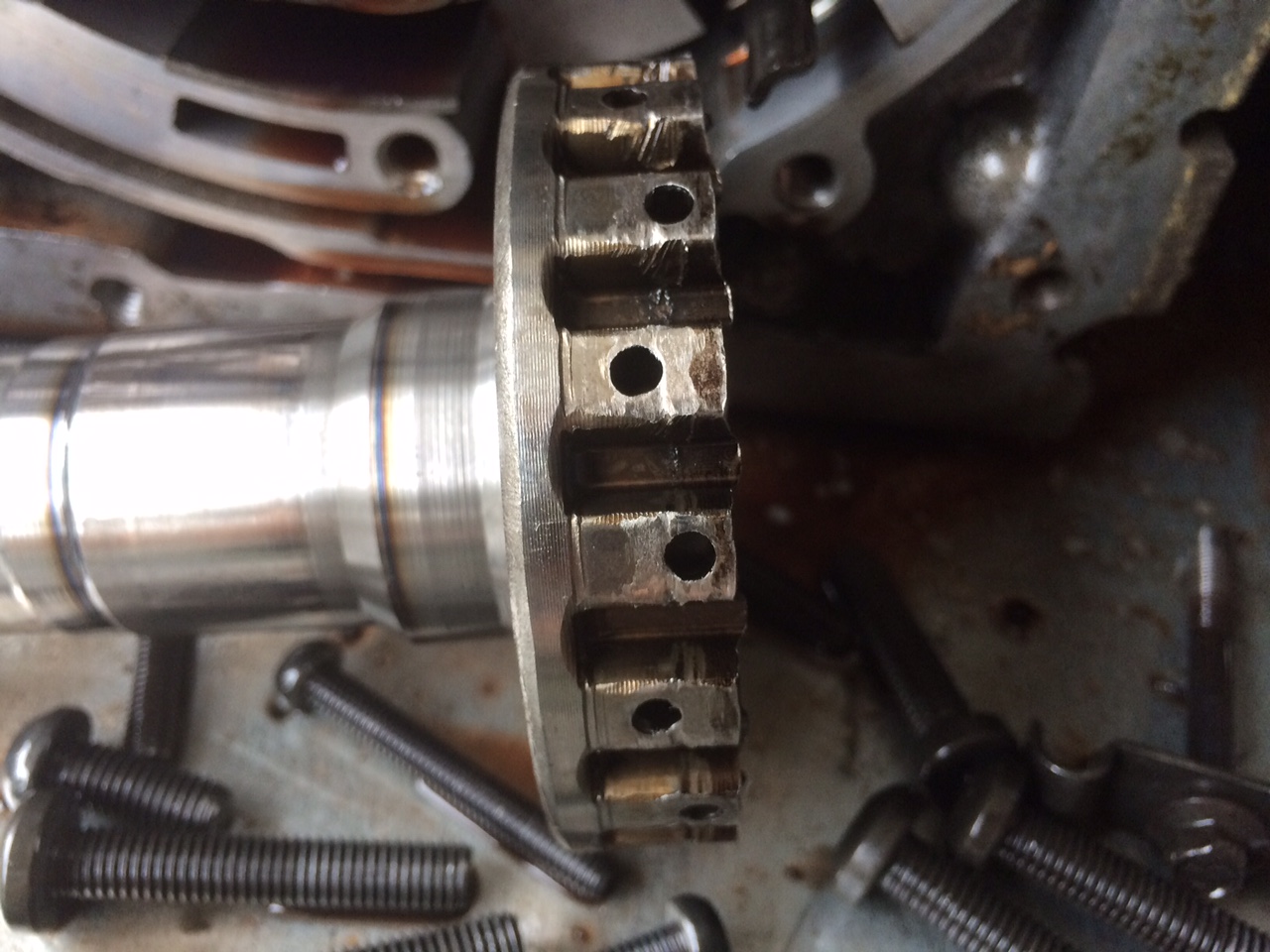

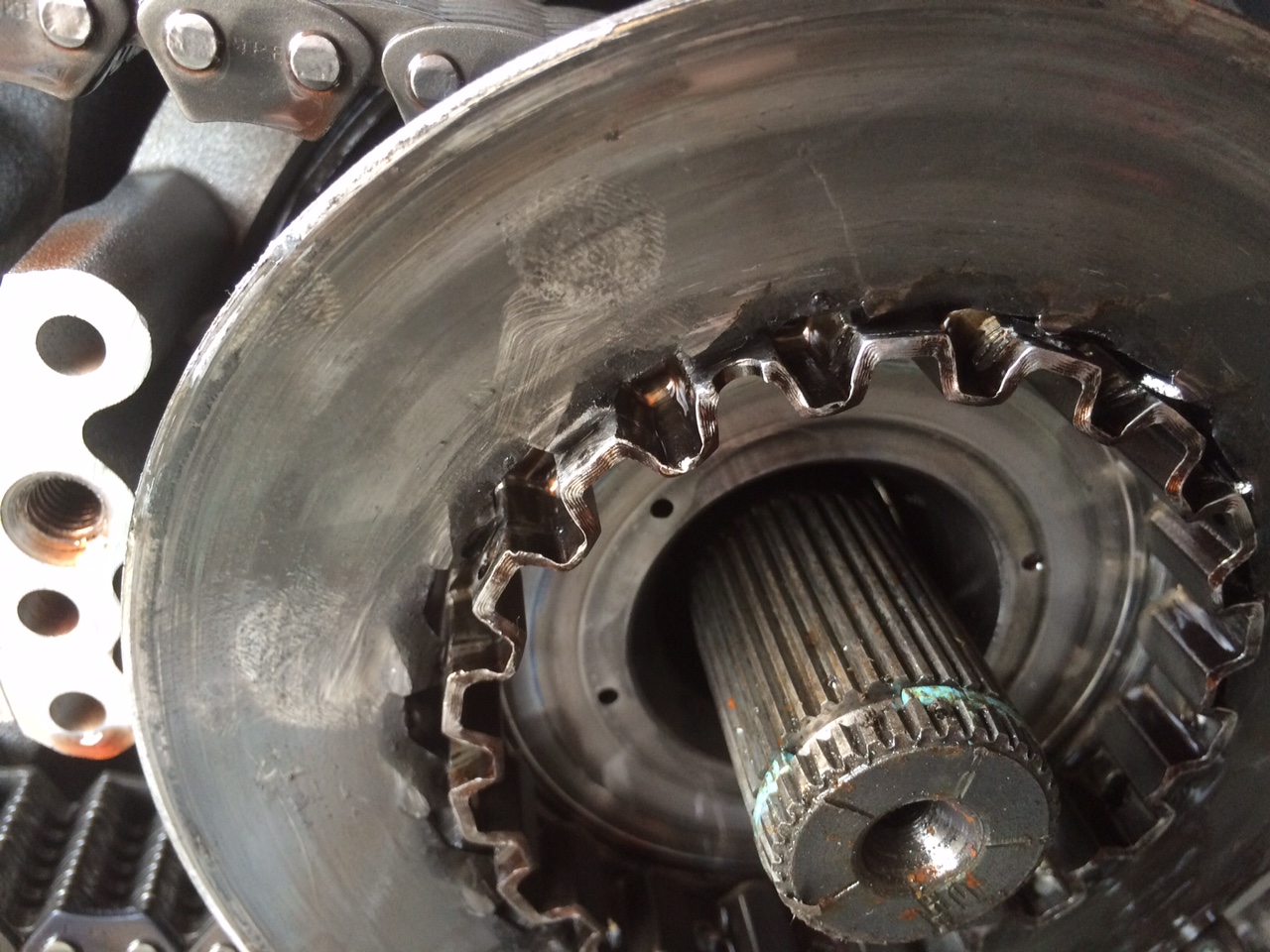

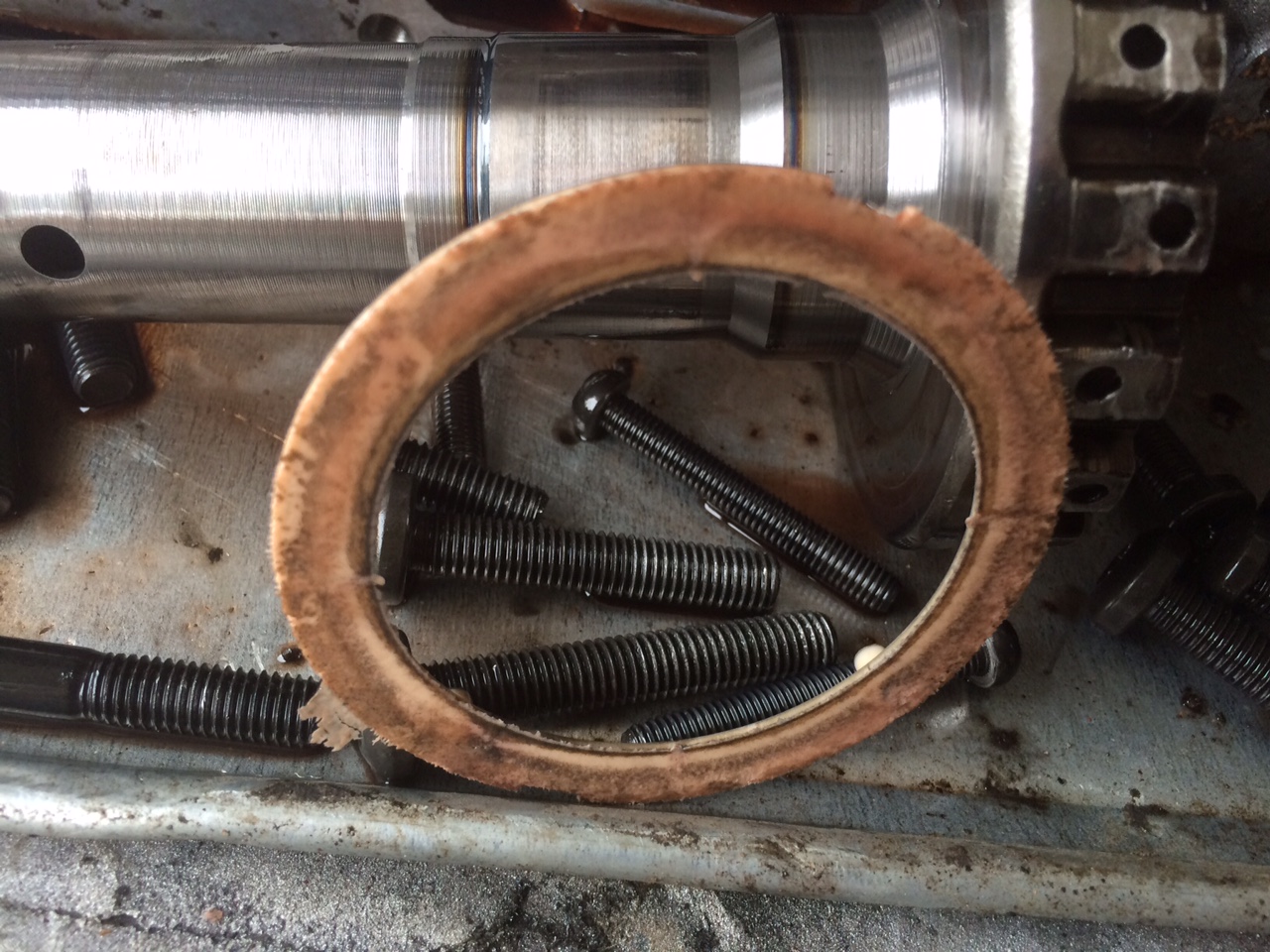

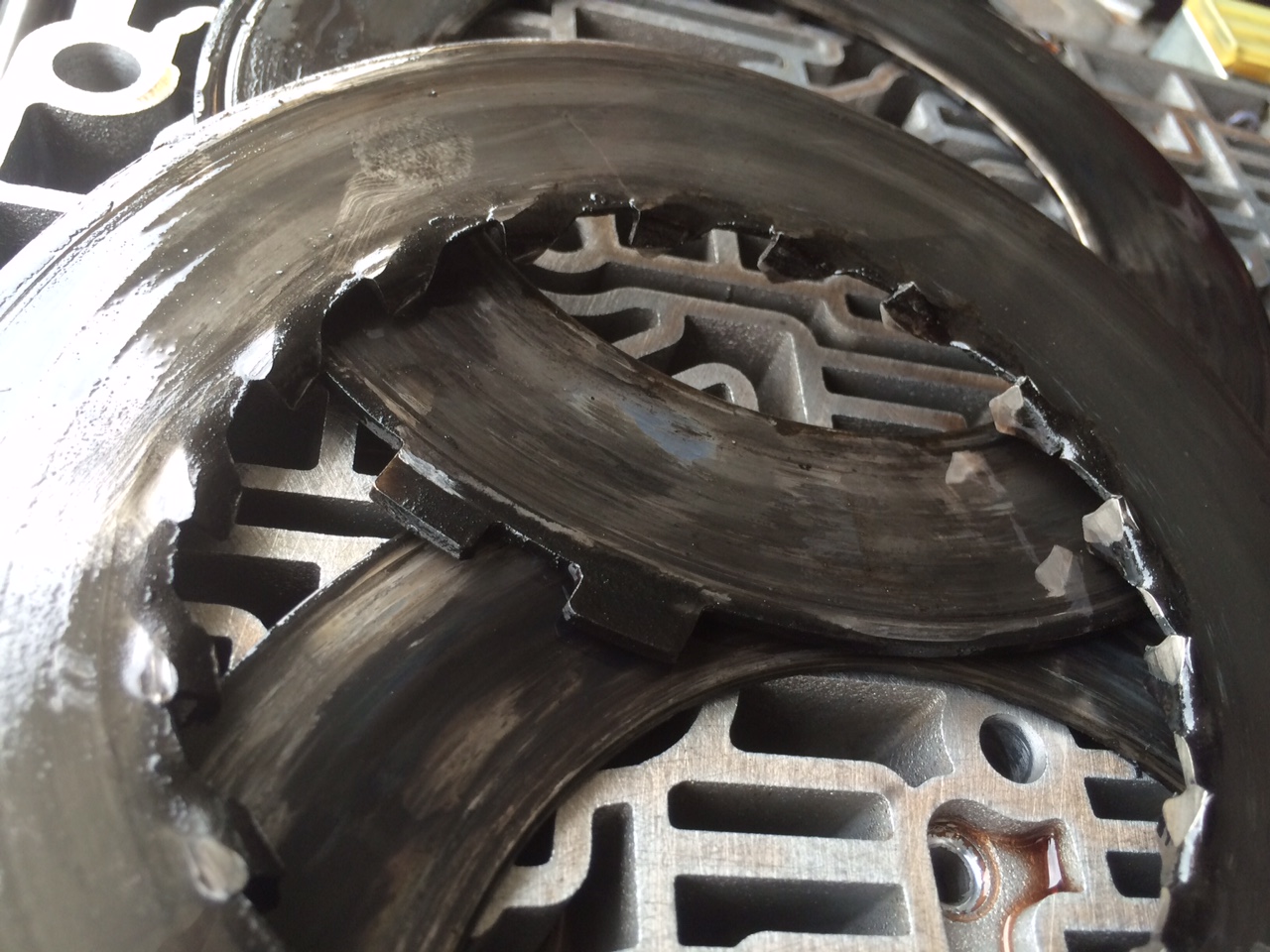

I am in the process of rebuilding Galen's TGP transmission. He had no 4th gear. After taking it apart, it's obvious why. The 4th gear clutch was all tore up. I never seen one like that before. But I don't have a lot of 4T60 experience either. The clutch material was gone. It was all metal to metal. The confusing part is that the clutch teeth were bent up pretty bad and the whole things seems to have been spinning in the outside of it's carrier. ( See pics ). I have yet to do much digging for parts. . .But, does anyone know if that clutch career is going to be ok to re-use? And what caused this? What else should I be looking for? It seems to me that something had to have been bound up to cause this. But I have no idea how.Attached File  IMG_0268.JPG   415.87KB   14 downloads

Attached Files



#2 White93z34

White93z34

    Grand Potato

  • Administrators
  • 11,573 posts
  • LocationPittsburgh, PA

Posted 26 June 2015 - 01:55 AM

If you need parts I have a core TGP 4t60hd that I'd give away

-Chris D. chrissig.jpg 1992 Chevrolet Lumina Z34 3.4L TDC v6 Getrag 284 1990 Pontiac Turbo Grand Prix 3.1L v6 Hydramatic 4T60 Qty:2 2001 Cadillac Seville STS 4.6L DOHC v8 Hydramatic 4T80 1987 Chevrolet Camaro Z28/IROC-Z 5.0L v8, Hydramatic 700R4 2007 Ford Ranger 2.3 i4 Automatic


#3 RobertISaar

RobertISaar

    Executive Member

  • Contributing Member
  • 10,061 posts

Posted 26 June 2015 - 02:53 AM

to end up with those kinds of marks on the 4th hub, seems like it would have to grab super hard. hard enough to tear the fiber plates apart? maybe the teeth folded over at the same time?

uZjPk.gifBaron of 6811uZjPk.gif

1995 Monte Carlo LS 3100, 4T60E... for now, future plans include driving it until the wheels fall off!NewSig.png524652.png


#4 Heartbeat1991

Heartbeat1991

    Senior Member

  • Contributing Member
  • 1,518 posts
  • LocationWest Warwick, RI

Posted 26 June 2015 - 12:53 PM

I found that the hub is pretty widely available. I bought one for $39 shipped. The trust washer was $.99 plus shipping. I have no idea how it happened. The material was completely gone on the clutch plate. The steel backing for the clutch was a little warped, and both that and the steels have evidence of metal to metal groves. The teeth on the clutch where it fits that hub are all torn up, as the clutch was obviously spinning around the hub. I am just not savvy enough on the workings of this trans to figure out why that would happen. I don't know if there's an underlying problem that caused this.

#5 vipmiller803

vipmiller803

    Advanced Member

  • Contributing Member
  • 425 posts
  • LocationDetroit, MI

Posted 26 June 2015 - 02:39 PM

The teeth on the clutch where it fits that hub are all torn up, as the clutch was obviously spinning around the hub. I am just not savvy enough on the workings of this trans to figure out why that would happen. I don't know if there's an underlying problem that caused this.

Hmmm. Can't exactly drive drop in fourth gear... Otherwise, blame the driver!

1995 Buick Regal Custom 2DR - 3.8L - DD - 4th Engine, 3rd Transmission, and counting...

2001 Dodge Ram 2500 4x4 - 5.9L Gas

1993 Jeep GC LTD - 4.0L - Snow Days Ride


#6 redgrandprix

redgrandprix

    Advanced Member

  • Members
  • PipPipPip
  • 751 posts

Posted 26 June 2015 - 05:05 PM

From what i've read its pretty common to have to replace the 4th hub shaft when 4th goes out and I would guess that what happened here isn't to uncommon since alto has a "improved design" bent tooth clutch pack for 4th, which is what dave from triple edge performace Said I should use. Sent from my YP-G70 using Tapatalk 2

[SIGPIC][/SIGPIC] "Who knows whats been done to it.":think: 1994 Bright Red Grand Prix SE 4-door (wrecked) :( 1990 ASC/MCLAREN Turbo Grand Prix :biggrin:

2006 Grand Prix GXP




#7 Heartbeat1991

Heartbeat1991

    Senior Member

  • Contributing Member
  • 1,518 posts
  • LocationWest Warwick, RI

Posted 26 June 2015 - 05:19 PM

That's encouraging, since I just ordered up alto clutches. :-)

#8 Leadfoot

Leadfoot

    Advanced Member

  • Members
  • PipPipPip
  • 482 posts

Posted 26 June 2015 - 08:51 PM

Hmmm. Can't exactly drive drop in fourth gear... Otherwise, blame the driver!

Beat me to it! :lol:

#9 redgrandprix

redgrandprix

    Advanced Member

  • Members
  • PipPipPip
  • 751 posts

Posted 27 June 2015 - 07:55 AM

i also am missing 4th although i have yet to start the teardown, im not sure about my situation but i know it leaked and got really low on fluid when it started slipping but im wondering if maybe dropping it into manual 3rd going down the highway and shenanigans full boost pull for a second or 2 then letting off the gas and slipping shifter back to 4th had anything to do with it since i do that every now and then....

[SIGPIC][/SIGPIC] "Who knows whats been done to it.":think: 1994 Bright Red Grand Prix SE 4-door (wrecked) :( 1990 ASC/MCLAREN Turbo Grand Prix :biggrin:

2006 Grand Prix GXP




#10 Mr. Dead Thread

Mr. Dead Thread

    Go4DaMo

  • Members
  • PipPipPipPip
  • 1,314 posts
  • LocationAkron, OH

Posted 28 June 2015 - 09:57 AM

Slapshiftin a w? That's a forum party foul! Chug your beer.

1993 Lumina Z34 | Getragged - 77k |

1998 Chevrolet K2500 EC LB I 5.7 Manual - 180k I

2014 Toyota Camry I Baby Hauler I
