1988 regal UB3 Swap help pin-out advice needed

cluster digital fast out regal shift stock swap switch

  • Please log in to reply
10 replies to this topic

#1 reliantkcar

reliantkcar

    Member

  • Members
  • PipPip
  • 17 posts

Posted 25 March 2015 - 03:55 AM

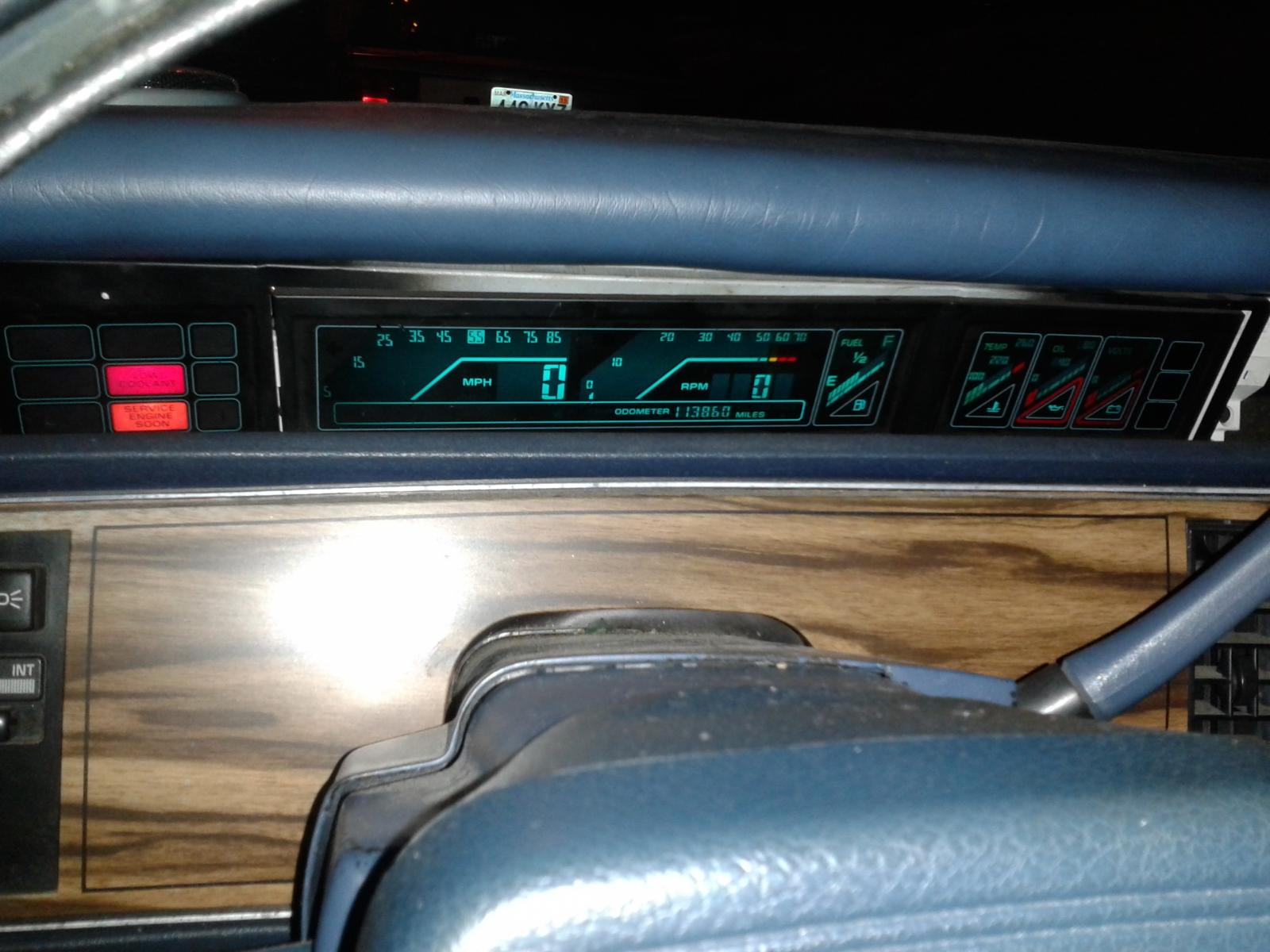

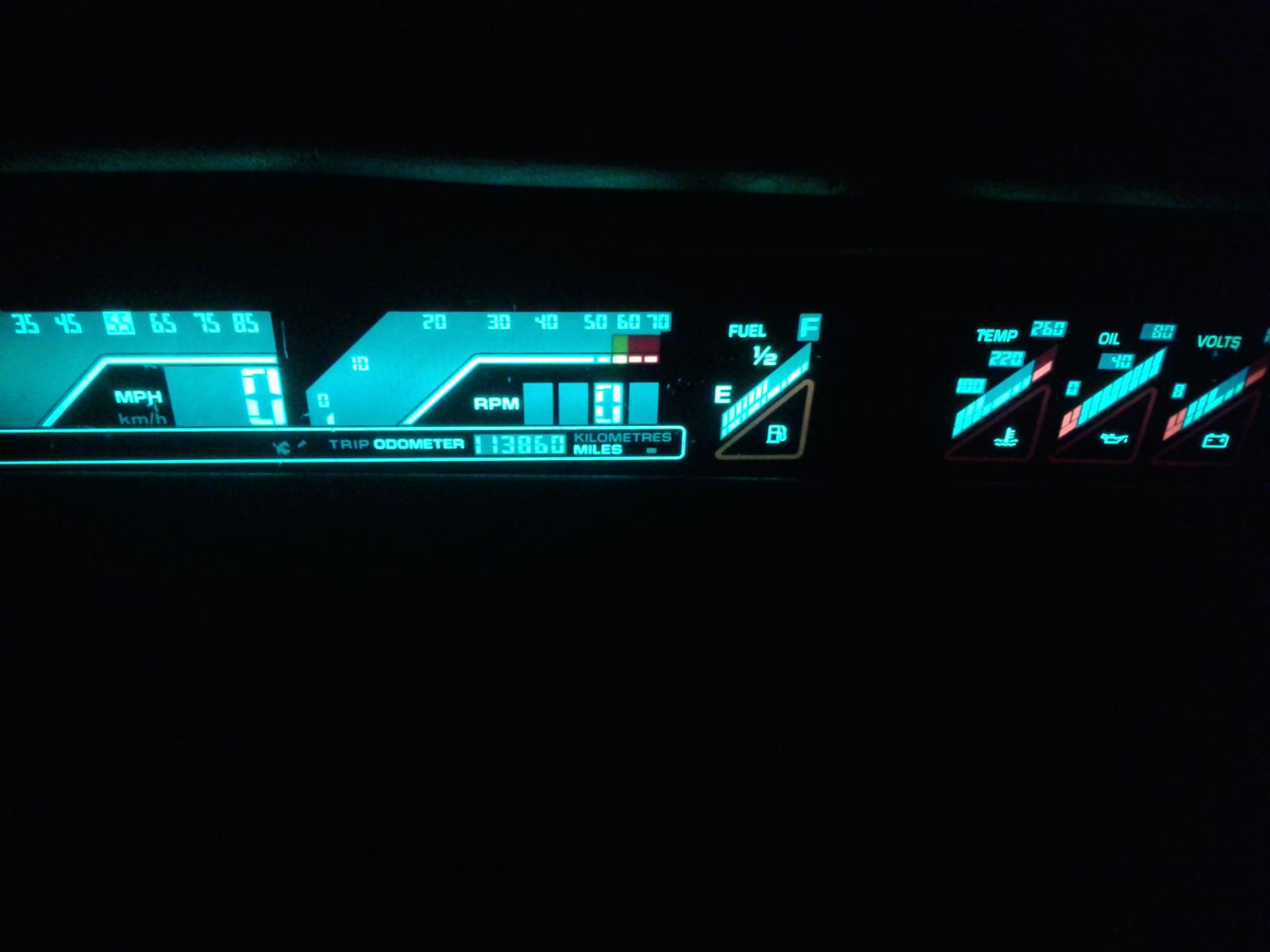

just bought a floor shift model full digital cluster to replace my stock broken base cluster I moved pins around to make it work best I could since the junkyard one has no harness so far I have working both turn signal indicators(before left was out) high beam (before wasn't working) brake engine low coolant temp gauge(ran wire direct to new sender) oil gauge (still has switch so shows max) volts gauge( just replaced alternator stays in middle whole time) fuel(works way better than base one which was bouncing all over) eng/metric switch Not working Tach (ran c13 direct to orange on diag port and nothing) seatbelt light(I think that was yellow one) have about 5-6 extra wires and this cluster has a extra 8x2 plug I don't have Any ideas on the correct pinouts for this swap and why is the tach still deadAttached File  20150324_231949.jpg   76.22KB   14 downloads Also my speedometer is way too fast and says 99mph at 75Mph (GPS Speed) it does this with both clusters...

Attached Files



#2 l67ss

l67ss

    Senior Member

  • Members
  • PipPipPipPip
  • 2,797 posts

Posted 25 March 2015 - 05:08 AM

just bought a floor shift model full digital cluster to replace my stock broken base clusterI moved pins around to make it work best I could since the junkyard one has no harnessso far I have workingboth turn signal indicators(before left was out)high beam (before wasn't working)brakeenginelow coolanttemp gauge(ran wire direct to new sender)oil gauge (still has switch so shows max)volts gauge( just replaced alternator stays in middle whole time)fuel(works way better than base one which was bouncing all over)eng/metric switchNot workingTach (ran c13 direct to orange on diag port and nothing)seatbelt light(I think that was yellow one)have about 5-6 extra wires and this cluster has a extra 8x2 plug I don't haveAny ideas on the correct pinouts for this swap and why is the tach still dead[ATTACH=CONFIG]18563[/ATTACH][ATTACH=CONFIG]18564[/ATTACH]Also my speedometer is way too fast and says 99mph at 75Mph (GPS Speed) it does this with both clusters...

What size are your tires?
[SIGPIC][/SIGPIC]Any idiot can build a fast v8, it takes a REAL idiot to build a fast v6 :)

#3 reliantkcar

reliantkcar

    Member

  • Members
  • PipPip
  • 17 posts

Posted 25 March 2015 - 01:06 PM

Tire size is p215-70-14 The transmission shifts into overdrive at 45mph real speed (63 mph indicated) so is the wire messed up or speed sensor and it does it with both ecm and clusters. Also is tach signal the orange dlc wire go to c13?

#4 RobertISaar

RobertISaar

    Executive Member

  • Contributing Member
  • 10,061 posts

Posted 25 March 2015 - 05:14 PM

having the speedometer that far off and so consistently off with both clusters and both ECMs would make me suspect wrong MEMCAL for the application or something screwy is going on with the VSS/reluctor. tach signal comes from the ECM via serial link, pin C13 on the cluster goes into a splice with pin M on the ALDL connector. if you didn't have a good connection between the ALDL connector and the ECM, that could also cause a dead tach. if you had a very wrong MEMCAL installed, that could also cause a dead tach. so.... which MEMCAL are you running? pop open the ECM via the 4-screw MEMCAL cover and check the 4 letter code on the silver sticker.

uZjPk.gifBaron of 6811uZjPk.gif

1995 Monte Carlo LS 3100, 4T60E... for now, future plans include driving it until the wheels fall off!NewSig.png524652.png


#5 reliantkcar

reliantkcar

    Member

  • Members
  • PipPip
  • 17 posts

Posted 25 March 2015 - 09:18 PM

It had a 90-93 3.1 ecm and cal. I got a ecm from a 89 cutlass supreme 2.8 with cal. Cover on new one is stuck

#6 RobertISaar

RobertISaar

    Executive Member

  • Contributing Member
  • 10,061 posts

Posted 26 March 2015 - 05:28 AM

hmm..... the MEMCAL you're running MAY explain the speed difference you're seeing, but I don't have a lot of info on the 88/89. what calibrations I do have implies that 88s have a VSS reluctor that generates around 44,000 pulses/mile and 89s generate around 32,000. that actually coincides with your data (37.5% vs 32-40%). as for the tach.... hard to say, you would need to confirm that the ECM is attempting to communicate with the cluster before condemning anything.

uZjPk.gifBaron of 6811uZjPk.gif

1995 Monte Carlo LS 3100, 4T60E... for now, future plans include driving it until the wheels fall off!NewSig.png524652.png


#7 reliantkcar

reliantkcar

    Member

  • Members
  • PipPip
  • 17 posts

Posted 26 March 2015 - 06:16 AM

How do I test the orange dlc wire for a signal and can I just use resistor to get the speedometer to show correct mph Currently 27=35 45=63 65=88 75=99mph

#8 RobertISaar

RobertISaar

    Executive Member

  • Contributing Member
  • 10,061 posts

Posted 26 March 2015 - 06:59 AM

not quite so simple. the digital clusters don't have any kind of trimming function like that, they require a 4,000 pulse/mile signal, there isn't really any way around that. testing the ALDL circuit would best be done with something that can request/monitor the circuit, like a Tech1/ALDL cable + software/DIC/DIS. it is a 0-5V signal, but it transitions at a rate of 8192 baud, so you would need an oscilloscope to see it.

uZjPk.gifBaron of 6811uZjPk.gif

1995 Monte Carlo LS 3100, 4T60E... for now, future plans include driving it until the wheels fall off!NewSig.png524652.png


#9 reliantkcar

reliantkcar

    Member

  • Members
  • PipPip
  • 17 posts

Posted 26 March 2015 - 01:37 PM

Maybe the wire is broken or shorting. Does anyone know which Ecm wire is the speedometer output and the M data wire. I'll just cut and splice under the hood... If it shifts into overdrive at 45mph real speed why is it telling both clusters 63mph with both ecm.... And does anyone have a pinout for the stock wires on the cluster or better yet the correct swap from base to the ub3.I might have a bad ground or something going on I have no idea what the extra wires are...

#10 RobertISaar

RobertISaar

    Executive Member

  • Contributing Member
  • 10,061 posts

Posted 26 March 2015 - 06:33 PM

http://imgur.com/a/3IFSSthe first 6 are the UB3 cluster, the last 3 are the base model.the transmission isn't computer controlled(outside of the TCC solenoid), shift points are determined via the TV cable that connects the throttle arm into the transmission.

uZjPk.gifBaron of 6811uZjPk.gif

1995 Monte Carlo LS 3100, 4T60E... for now, future plans include driving it until the wheels fall off!NewSig.png524652.png


#11 Artem

Artem

    Newbie

  • Members
  • Pip
  • 5 posts

Posted 13 December 2015 - 02:29 AM

I know it's been almost a year now, but I have done this exact swap 2 years ago and I have wiring diagrams if you still need help with this project.
